S63DC-96-130 (Commercial/Parker) Ox Bodies SAT Dump Hoist Cylinders

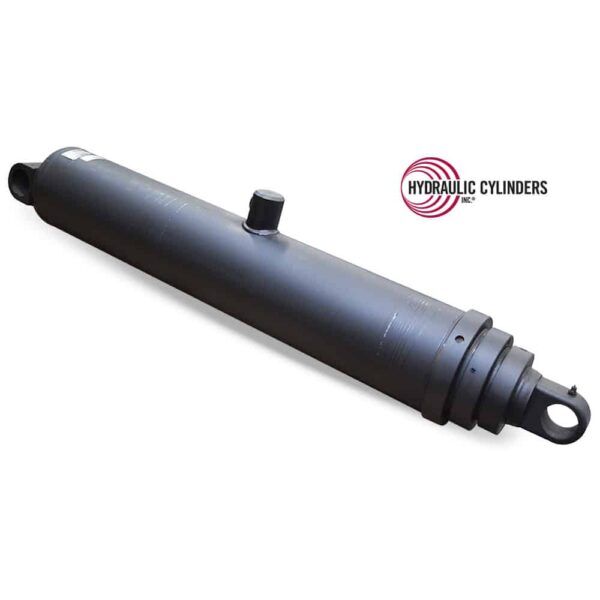

Heil Replacement SAT Dump Hoist Cylinder

$2,401.00

Fast Ship What's This?

Specifications for 3771413308

CategoryReplacement Telescopic Hydraulic Cylinders » Dump (Telescopic) » Dump Trucks/Trailers/Hoists
Fits Manufacturer Commercial/Parker
Function Dump Hoist / Body Raise / Tipping
Features Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU 3771413308
Weight 315 lbs
Tele Largest Stage OD

6″
Telescopic Stages

3
Telescopic Stroke

130.00″
Closed

56.00″
Open Extended Length

186.00″
Base End Mount Type

Cross-Tube
Base Pin Size

2.00″
Base Mount Width

7.00″
Rod End Mount Type

Drilled Thru Lug
Rod Pin Size

2.00″
Rod Mount Width

2.00″
Extend Port/Plunger

1.00 NPT 90D
18 Month Warranty

Description

The S63DC-96-130 is a 3-stage single-acting telescopic hydraulic cylinder engineered for dump body raise, hoist, and tipping applications. As a direct replacement for Commercial/Parker Ox Bodies cylinders, it delivers reliable power and smooth extension performance under heavy loads.

Thanks to its 130.00″ stroke and 186.00″ fully extended length, it supports high-capacity lifting with confidence. Moreover, the cylinder’s 6″ OD on the largest stage and 56.00″ closed length allow for efficient storage when not in use. In addition, it features a cross-tube base mount (7.00″ wide, 2.00″ pin) and a drilled-through lug rod end (2.00″ pin, 2.00″ wide), both of which ensure secure installation in demanding applications.

To simplify hydraulic setup, the extend port includes a 1.00″ NPT 90-degree fitting. As a result, installation is quick and straightforward. Above all, this replacement cylinder is Performance-Built and Warranty-Backed to meet or exceed OEM standards.

FASTSHIP available—order by 12:00 CST for same-day shipping.
Demolish Downtime.

Tele Largest Stage OD:

6″

Telescopic Stages:

3

Telescopic Stroke:

130.00″

Closed:

56.00″

Open Extended Length:

186.00″

Base End Mount Type:

Cross-Tube

Base Pin Size:

2.00″

Base Mount Width:

7.00″

Rod End Mount Type:

Drilled Thru Lug

Rod Pin Size:

2.00″

Rod Mount Width:

2.00″

Extend Port/Plunger:

1.00 NPT 90D

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
001-3878 3771413308 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3878 3771413308 Heil Heil — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
10027-63-132 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1593754 3771413308 Ox Bodies / Tbei Inc Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1604435 3771413308 Ox Bodies / Tbei Inc Ox Bodies / Tbei Inc — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1HSAT000250040 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
208-63132 3771413308 Dalton Hydraulics Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
221-0252 3771413308 Hilbilt Mfg Co Hilbilt Mfg Co — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
246-7571 3771413308 Nexus / Caterpillar Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30017-63-129 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30021-63-132 3771413308 Hyco Fruehauf — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30021-63-132E 3771413308 Hyco Fruehauf — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30097-63-132 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30146-63-129 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30347-63-129 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30347-63-130 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30347-63-132 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30347-63-136 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413073 3771413308 Commercial / Parker Columbia Body — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413104 3771413308 Commercial / Parker Perfection — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413114 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413135 3771413308 Commercial / Parker Davis Trailer & Truck Equipment — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413145 3771413308 Commercial / Parker Perfection — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413173 3771413308 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413184 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413196 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413223 3771413308 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413224 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413253 3771413308 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413278 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413308 3771413308 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413323 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771913045 3771413308 Commercial / Parker Ox Bodies NS2500 Dump Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
6-3-130-A00 3771413308 Muncie Power Products Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-1-130 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-1-137 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-1-138 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-180-130 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-180-137 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-189-130 3771413308 Custom Hoist Davis Trailer & Truck Equipment — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-191-130 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-2-130 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-2-132 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-2-137 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-402-132 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-44-130 3771413308 Custom Hoist Davis Trailer & Truck Equipment — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-4402-132 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-53-130 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-702-132 3771413308 Custom Hoist Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63A132V 3771413308 Perfection Perfection — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70021-63-132 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70347-63-130 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70347-63-130DE 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70347-63-132 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70347-63-132DE 3771413308 Hyco Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70574158 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70574164 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
71564168 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
71564172 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
80958-HEN 3771413308 Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. Mark One 14 -15 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
A68859 3771413308 Perfection Perfection — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
ECC-3366-3 3771413308 Fruehauf Fruehauf — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 129-3-03205-231A-K1454 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 129-3-03205-441A-K1442-BU 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 6-3-126 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE 6-3-126-BU 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE A129-3-03235-243-K1450 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE A129-3-03235-248-K1425 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE A6-3-127-K56 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE A6-3-127-K57 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
fEE-129-3-03205-441A-K1442-BU 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE-6-3-126 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE-6-3-126-BU 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE129-3-03205-441A-K1442-BU 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
FEE6-3-126 3771413308 Hyva Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
MH100-63-132P 3771413308 Metaris, Hydraulex Global Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
NW175400 3771413308 Metaris, Hydraulex Global Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S53DC-63-130 3771413308 Commercial / Parker Ox Bodies NS2500 Dump Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-101-130 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-23-128 3771413308 Commercial / Parker Columbia Body — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-33-132 3771413308 Commercial / Parker Perfection — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-41-130 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-47-130 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-47G-130 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-48-130 3771413308 Commercial / Parker Davis Trailer & Truck Equipment — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-50-132 3771413308 Commercial / Parker Perfection — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-66-130 3771413308 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-72-130 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-76-130 3771413308 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-83-130 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63DC-96-130 3771413308 Commercial / Parker Ox Bodies — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
SA63DB-1-130 3771413308 Hilbilt Hilbilt — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
SAT63DC129.56-AACB-56.00 3771413308 Commercial / Parker Miscellaneous Manufacturers — Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

18 Month Warranty

Warranty Coverage:
Commercial/Parker telescopic cylinders—both single-acting and double-acting models—are covered by an 18-month limited warranty against defects in materials, workmanship, and leak-free performance.

Exclusions & Conditions:

  • Warranty does not cover misuse, misapplication, contamination, or unauthorized alterations.
  • All claims are subject to inspection and approval by Parker.

Claims Process:
Contact Hydraulic Cylinders, Inc. to begin the warranty claim process. Claims require return and evaluation of the product.
