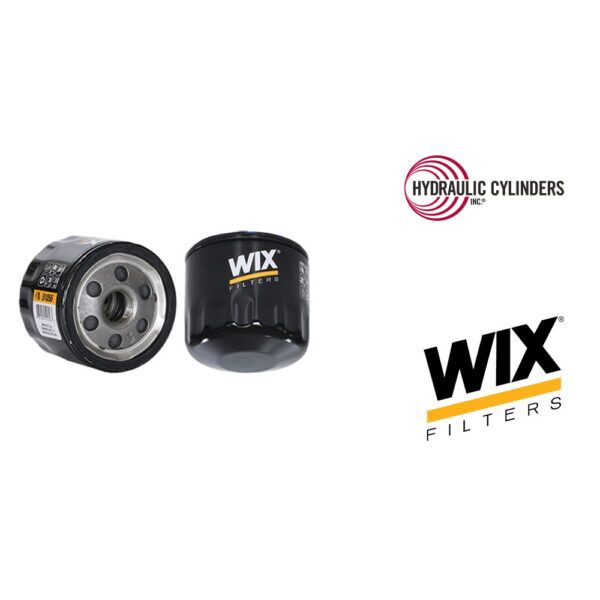

WIX 51056 Spin-On Lube Filter | 3/4-16 Thread, 21 Micron
$15.37 In Stock
Buy Now, Pay Later Available in Checkout
Specifications for 51056
| Category | Wix Filters » WIX Oil & Lube Filters |
|---|---|
| Fits Manufacturer | Wix |
| Models | New Holland C175, New Holland L175 |
| Function | Filtration |
| SKU | 51056 |
|---|---|
| UPC | 765809510562 |
| Weight | 1.0 lbs |
| Type | Full Flow |
|---|---|
| Height | 2.707" / 69mm |
| Outer Diameter Top | 2.921" / 74mm |
| By-Pass Valve Setting-PSI | 8-11 PSI |
| Beta Ratio | 2/20=6/20 |
| Burst Pressure-PSI | 325 |
| Max Flow Rate | 7-9 GPM |
| Nominal Micron Rating | 21 |
| Gasket Type | Attached |
| Gasket O.D. | 2.734" / 69mm |
| Gasket I.D. | 2.430" / 62mm |
| Gasket Thickness | 0.226" / 6mm |
| Thread Size | 3/4-16 |
Description
The WIX 51056 spin-on lube filter is a genuine WIX oil filter built for on-highway, agricultural, and off-road engines. It uses enhanced cellulose media rated at 21 microns with a 3/4-16 thread, plus a built-in anti-drainback valve for faster startup protection (UPC 765809510562).
Hydraulic Cylinders, Inc. (HCI) stocks the WIX 51056 alongside the heavy equipment we already supply parts for. It fits engines found in John Deere, Case, New Holland, Kubota, Bobcat, Volvo machines, plus trucks and automobiles — the full fitment list is below.
Principle Applications: Various Lawn & Garden Equip. + Small Tractors w/Briggs & Stratton, Hatz, Kawasaki, Kohler, Lister Engines.
Not sure the 51056 is the right filter for your equipment? Call HCI and we’ll confirm fitment before you order. Demolish Downtime.
Type:
Full Flow
Height:
2.707" / 69mm
Outer Diameter Top:
2.921" / 74mm
By-Pass Valve Setting-PSI:
8-11 PSI
Beta Ratio:
2/20=6/20
Burst Pressure-PSI:
325
Max Flow Rate:
7-9 GPM
Nominal Micron Rating:
21
Gasket Type:
Attached
Gasket O.D.:
2.734" / 69mm
Gasket I.D.:
2.430" / 62mm
Gasket Thickness:
0.226" / 6mm
Thread Size:
3/4-16
| Make / Model | Equipment | Year | Engine |
|---|---|---|---|
| Agco 2020 MOWER | Lawn & Garden | – | w / Kohler Command 20 HP Engine |
| Agco ZT1644 MOWER | Lawn & Garden | – | w / Kohler Command 18 HP Engine |
| Airman PDS100S | Compressors | – | w / Shibaura S773LC (Tier II) Engine |
| Aksa AB100 SERIES | Generators | – | w / Briggs & Stratton 18 HP Engine |
| Aksa AK100 SERIES | Generators | – | w / Kohler 18 HP Engine |
| Aksa AK120TE | Generators | – | w / Kohler 22 HP Engine |
| Aksa AK120TE | Generators | – | w / Kohler 25 HP Engine |
| Aksa AK150TE | Generators | – | w / Kohler 22 HP Engine |
| Aksa AK150TE | Generators | – | w / Kohler 25 HP Engine |
| Alkota PRESSURE WASHER | Pressure Washers | – | w / Kohler 18 HP Engine |
| Alkota PRESSURE WASHER | Pressure Washers | – | w / Kohler 20 HP Engine |
| Alkota PRESSURE WASHER | Pressure Washers | – | w / Kohler 25 HP Engine |
| Allen Engineering Corp. HP100 (RIDING TROWEL) | Paving Equipment | – | w / 2 Kohler 25 HP Engines |
| Allen Engineering Corp. HP200 (RIDING TROWEL) | Paving Equipment | – | w / 2 Kohler 25 HP Engines |
| Allen Engineering Corp. PRO 1200 (RIDING TROWEL) | Paving Equipment | – | w / Kohler 25 HP Engine |
| Allen Engineering Corp. PRO 900 (RIDING TROWEL) | Paving Equipment | – | w / Kohler 25 HP Engine |
| Allmand TLB25 | Miscellaneous Equipment | – | w / Kohler 25 HP Engine |
| Allmand TLB325 | Miscellaneous Equipment | – | w / Kohler 25 HP Engine |
| Allmand TOB25 | Miscellaneous Equipment | – | w / Kohler 25 HP Engine |
| Amida PB21 | Construction | – | w / Briggs & Stratton 18 HP Engine |
| Ariens 1640 (MOWER) | Garden Tractors | – | w / Kohler SV480 Engine |
| Ariens 1840 (MOWER) | Garden Tractors | – | w / Kohler SV540 Engine |
| Ariens 1944 (MOWER) | Garden Tractors | – | w / Kohler CH20 Engine |
| Ariens 2044 (MOWER) | Garden Tractors | – | w / Kohler SV710 Engine |
| Ariens 2044XL (MOWER) | Garden Tractors | – | w / Kohler SV710 Engine |
| Ariens 2148 (MOWER) | Garden Tractors | – | w / Kohler CH22 Engine |
| Ariens 2348 (MOWER) | Garden Tractors | – | w / Kohler SV720 Engine |
| Ariens 2348XL (MOWER) | Garden Tractors | – | w / Kohler SV720 Engine |
| Ariens 2352 (MOWER) | Garden Tractors | – | w / Kohler CH25 Engine |
| Ariens 2552 (MOWER) | Garden Tractors | – | w / Kohler CV25 Engine |
| Ariens 2552 (MOWER) | Garden Tractors | – | w / Kohler SV730 Engine |
| Ariens MINI ZOOM 1534 (MOWER) | Garden Tractors | – | w / Kohler SV470 Engine |
| Ariens MINI ZOOM 1540 (MOWER) | Garden Tractors | – | w / Kohler SV470 Engine |
| Ariens ZOOM XL 54 | Garden Tractors | – | w / Kohler SV725 Engine |
| Bandit Industries, Inc. 2100 STUMP GRINDER | Equipment | – | w / Kohler CH740 Engine |
| Bandit Industries, Inc. 2400 WHOLE TREE CHIPPER | Equipment | – | w / Caterpillar 3412 Engine |
| Bandit Industries, Inc. 5680 | Equipment | – | w / Caterpillar 3412 Engine |
| Bandit Industries, Inc. 65 CHIPPER | Equipment | – | w / Kohler Command 25 HP Engine |
| Bandit Industries, Inc. HB19 STUMP GRINDER | Equipment | – | w / Kohler Command 20 HP Engine |
| Bandit Industries, Inc. HB19SP STUMP GRINDER | Equipment | – | w / Kohler Command 20 HP Engine |
| Bandit Industries, Inc. HB20 STUMP GRINDER | Equipment | – | w / Kohler Command 20 HP Engine |
| Bobcat 942505G (PROCAT) 61" | Lawn-Garden, Mower-Turf Equip | – | w / Kohler CV740 27 HP Engine |
| Bobcat PREDATOR PRO SERIES | Lawn-Garden, Mower-Turf Equip | – | w / Kohler CV750 Engine |
| Bobcat ZT120 (ZERO TURN) | Lawn-Garden, Mower-Turf Equip | – | w / Kohler CV20S Engine |
| Bobcat ZT223LC (ZERO TURN) | Lawn-Garden, Mower-Turf Equip | – | w / Kohler LV675 23 HP Engine |
| Bobcat ZT225 (ZERO TURN) | Lawn-Garden, Mower-Turf Equip | – | w / Kohler CV25 Engine |
| Bobcat ZT227 (ZERO TURN) | Lawn-Garden, Mower-Turf Equip | – | w / Kohler CV25S Engine |
| Bobcat ZT227 (ZERO TURN) | Lawn-Garden, Mower-Turf Equip | – | w / Kohler CV740 27 HP Engine |
| Boxer 427 | Equipment | – | V2 0.747L |
| Bunton BZT1250 | Mowers | – | w / Kohler CH25S Engine |
| Bunton BZT1250 | Mowers | – | w / Kohler CV25S Engine |
| Bunton BZT2250 | Mowers | – | w / Kohler CV25S Engine |
| Bush Hog ZT18 (MOWER) | Lawn Tractors | – | w / Kohler CH18S Engine |
| Bush Hog ZT180 (MOWER) | Lawn Tractors | – | w / Kohler CH18S Engine |
| Bush Hog ZT22 (MOWER) | Lawn Tractors | – | w / Kohler CH22S Engine |
| Bush Hog ZT220 (MOWER) | Lawn Tractors | – | w / Kohler CH22S Engine |
| Bush Hog ZT230 (MOWER) | Lawn Tractors | – | w / Kohler CH23S Engine |
| Bush Hog ZT25 (MOWER) | Lawn Tractors | – | w / Kohler CH25S Engine |
| Bush Hog ZT25 (MOWER) | Lawn Tractors | – | w / Kohler CH730S Engine |
| Bush Hog ZT250 (MOWER) | Lawn Tractors | – | w / Kohler CH730S Engine |
| Case / Case-Ih 40 FARMALL | Wheel Tractors | – | w / Shibaura 2.0L (121.7 CID) Engine |
| Case / Case-Ih 45 FARMALL | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Case / Case-Ih 45A FARMALL | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Case / Case-Ih 50 FARMALL | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Case / Case-Ih 55A FARMALL | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Case / Case-Ih D35 | Wheel Tractors | – | w / Shibaura 1.7L (101.4 CID) Engine |
| Case / Case-Ih D35 FARMALL | Wheel Tractors | – | w / Shibaura 1.7L (101.4 CID) Engine |
| Case / Case-Ih D45 | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Case / Case-Ih D45 FARMALL | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Case / Case-Ih DX18E FARMALL | Wheel Tractors | – | w / Shibaura 1.0L (58.2 CID) Engine |
| Case / Case-Ih DX22E FARMALL | Wheel Tractors | – | w / Shibaura 1.0L (58.2 CID) Engine |
| Case / Case-Ih DX35 | Wheel Tractors | – | w / Shibaura 1.7L (101.4 CID) Engine |
| Case / Case-Ih DX35 FARMALL | Wheel Tractors | – | w / Shibaura 1.7L (101.4 CID) Engine |
| Case / Case-Ih DX45 | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Case / Case-Ih DX45 FARMALL | Wheel Tractors | – | w / Shibaura 2.2L (135.2 CID) Engine |
| Chevrolet MALTIZ | – | 2011 – 2011 | L4 1.0L 1000cc |
| Chevrolet MATIZ | – | 2004 – 2006 | L4 1.0L |
| Chevrolet SPARK | – | 2003 – 2010 | L4 1.0L |
| Chevrolet SPARK | – | 2009 – 2010 | L3 0.8L 796cc |
| Country Clipper JAZEE | Mowers | – | w / Kohler Courage 27 HP V-Twin Engine |
| Country Clipper JAZEE PRO | Mowers | – | w / Kohler Courage 27 HP V-Twin Engine |
| Cub Cadet 4X2 | – | 2007 – 2007 | w / Kohler 20 HP Engine |
| Cub Cadet 4X4 | – | 2007 – 2007 | w / Kohler 20 HP Engine |
| Cub Cadet 6X4 | – | 2007 – 2007 | w / Kohler 20 HP Engine |
| Cub Cadet BIG COUNTRY 4X2 | – | 2007 – 2007 | w / Kohler 18 HP Engine |
| Cub Cadet VOLUNTEER | – | 2008 – 2013 | w / Kohler 20 HP Engine |
| Cub Cadet VOLUNTEER EFI | – | 2008 – 2013 | w / Kohler EFI Engine |
| Cub Cadet 1315 | (Also See IHC+Lawn & Garden) | – | w / Kohler 12.5 HP Engine |
| Cub Cadet 1320 | (Also See IHC+Lawn & Garden) | – | w / Kohler 12.5 HP Engine |
| Cub Cadet 1330 | (Also See IHC+Lawn & Garden) | – | w / Kohler Engine |
| Cub Cadet 1515 | (Also See IHC+Lawn & Garden) | – | w / Kohler 15 HP Engine |
| Cub Cadet 1517 | (Also See IHC+Lawn & Garden) | – | w / Kohler 17 HP Engine |
| Cub Cadet 1863 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet 1864 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet 2084 | (Also See IHC+Lawn & Garden) | – | w / Kohler Engine |
| Cub Cadet 2130 | (Also See IHC+Lawn & Garden) | – | w / Kohler Engine |
| Cub Cadet 2135 | (Also See IHC+Lawn & Garden) | – | w / Kohler Engine |
| Cub Cadet 2166 | (Also See IHC+Lawn & Garden) | – | w / Kohler 16 HP Engine |
| Cub Cadet 2176 | (Also See IHC+Lawn & Garden) | – | w / Kohler 17 HP Engine |
| Cub Cadet 2185 | (Also See IHC+Lawn & Garden) | – | w / Kohler Engine |
| Cub Cadet 2186 | (Also See IHC+Lawn & Garden) | – | w / Kohler 16 HP Engine |
| Cub Cadet 2186 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet 2186 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet 2206 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet 2206 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet 2284 | (Also See IHC+Lawn & Garden) | – | w / Kohler 22 HP Engine |
| Cub Cadet 2518 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet 3184 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet 3186 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet 3204 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet 3206 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet 3225 | (Also See IHC+Lawn & Garden) | – | w / Kohler 22 HP Engine |
| Cub Cadet 3235 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet 3235 | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet 3240 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet 365 (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet 3654 (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet 3660 (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet 4814 | (Also See IHC+Lawn & Garden) | – | w / Kohler 14 HP Engine |
| Cub Cadet 5252 | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet 5252E | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet GT1554 | (Also See IHC+Lawn & Garden) | – | w / Kohler 27 HP Engine |
| Cub Cadet GT1654 | (Also See IHC+Lawn & Garden) | – | w / Kohler 27 HP Engine |
| Cub Cadet GT2186 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet GT2186 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet GT2523 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet GT2542 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet GT2544 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet GT2550 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet GT2554 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet GT3100 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet GT3200 | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet GT3204 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet GT3235 | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet HDS2185 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet LGT1050 | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet LT1018LE | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet LT1040 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet LT1042 | (Also See IHC+Lawn & Garden) | – | w / Kohler 19 HP Engine |
| Cub Cadet LT1045 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet LT1046 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet LT1050 | (Also See IHC+Lawn & Garden) | – | w / Kohler 26 HP Engine |
| Cub Cadet LT1550 | (Also See IHC+Lawn & Garden) | – | w / Kohler Engine |
| Cub Cadet LT2042 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet LT2542 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet LTX1042 | (Also See IHC+Lawn & Garden) | – | w / Kohler SV590 Engine |
| Cub Cadet LTX1042KH | (Also See IHC+Lawn & Garden) | – | w / Kohler SV715 Engine |
| Cub Cadet LTX1050 | (Also See IHC+Lawn & Garden) | – | w / Kohler SV725 Engine |
| Cub Cadet M48 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet M50 TANK (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet M54 (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 25 HP Engine |
| Cub Cadet M60 TANK (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 27 HP Engine |
| Cub Cadet M60 TANK (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 28 HP Engine |
| Cub Cadet M60-KH (53AH8CTX750) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 724cc 44.2 CID |
| Cub Cadet M60-KH (53BH8CT6050) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 724cc 44.2 CID |
| Cub Cadet M60-KH (53CB5BDX750) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 724cc 44.2 CID |
| Cub Cadet RZT-42 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-42 | (Also See IHC+Lawn & Garden) | – | w / Kohler 17 HP Engine |
| Cub Cadet RZT-50 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-L42H | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-L42KH | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-L46 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-L46H | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-L50 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-L54 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-L54KH | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-S42 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-S46 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-S50 | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-S54KH | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet RZT-SX 42 | (Also See IHC+Lawn & Garden) | – | V2 0.725L 725CC 44CID |
| Cub Cadet RZT-SX 46 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet RZT-SX 50 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet Recon 48 (53AH8ST3050) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 674cc 41.1 CID |
| Cub Cadet Recon 60 (53AH8ST5050) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 724cc 44.2 CID |
| Cub Cadet SLT1554 | (Also See IHC+Lawn & Garden) | – | w / Kohler CV740 27 HP Engine |
| Cub Cadet SLTX1050 | (Also See IHC+Lawn & Garden) | – | V 2 725cc 44 CID |
| Cub Cadet TANK L60KH | (Also See IHC+Lawn & Garden) | – | V2 |
| Cub Cadet Tank 48 (53AH8STB050) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 674cc 41.1 CID |
| Cub Cadet Tank 60 (53AH8STD050) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 724cc 44.2 CID |
| Cub Cadet Tanl L48KH (53AH8CTB050) | (Also See IHC+Lawn & Garden) | – | V 2 0.7L 724cc 44.2 CID |
| Cub Cadet XT1-GT50 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet XT1-LT42 | (Also See IHC+Lawn & Garden) | – | L1 0.547L 547CC 33CID |
| Cub Cadet XT2-GX54 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet XT2-GX54 | (Also See IHC+Lawn & Garden) | – | V2 747CC 46CID |
| Cub Cadet XT2-LX42 | (Also See IHC+Lawn & Garden) | – | V2 0.725L 725CC 44CID |
| Cub Cadet XT2-LX46 | (Also See IHC+Lawn & Garden) | – | L4 541CC 33CID |
| Cub Cadet XT2-LX46 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet XT2-LX50 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet XT2-LX54 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet XT2-SLX50 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet XT2-SLX54 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet XT2-ST54 | (Also See IHC+Lawn & Garden) | – | V2 725CC 44CID |
| Cub Cadet Z FORCE 44 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet Z FORCE 48 | (Also See IHC+Lawn & Garden) | – | w / Kohler 20 HP Engine |
| Cub Cadet Z FORCE 50 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet Z FORCE 60 | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet Z-WING | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet Z-WING 48 (MOWER) | (Also See IHC+Lawn & Garden) | – | w / Kohler 23 HP Engine |
| Cub Cadet Z48 | (Also See IHC+Lawn & Garden) | – | w / Kohler 18 HP Engine |
| Cub Cadet Z54 | (Also See IHC+Lawn & Garden) | – | w / Kohler Engine |
| Ditchwitch R230 (ZAHN) | Loaders | – | (CH23S Gas Mfr Kohler ) |
| Ditchwitch R300 (ZAHN) | Loaders | – | (CH750S Gas Mfr Kohler ) |
| Ditchwitch SK350 | Loaders | – | (CH20 Gas Mfr Kohler ) |
| Ditchwitch SK500 | Loaders | – | (CH740S Gas Mfr Kohler ) |
| Ditchwitch FP22 | Mixers/Pumps/Vacuums | – | (CH22 Gas Mfr Kohler ) |
| Ditchwitch FX20 | Mixers/Pumps/Vacuums | – | (CH740S Gas Mfr Kohler ) |
| Ditchwitch 1820 WALK-BEHIND | Trenchers | – | (Gas HP 18 Mfr Kohler ) |
| Dixie Chopper IRON EAGLE (2344) | Mowers | – | (Naturally Aspirated Gas HP 23 Mfr Kohler ) |
| Dixie Chopper IRON EAGLE (2350) | Mowers | – | (Naturally Aspirated Gas HP 23 Mfr Kohler ) |
| Dixie Chopper IRON EAGLE (2560) | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixie Chopper LT2000-50D | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper LT2200-44 | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper LX2002-42 | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper MAGNUM (2344) | Mowers | – | (Naturally Aspirated Gas HP 23 Mfr Kohler ) |
| Dixie Chopper MAGNUM (2350) | Mowers | – | (Naturally Aspirated Gas HP 23 Mfr Kohler ) |
| Dixie Chopper MAGNUM (2560) | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixie Chopper SILVER EAGLE (2550) | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixie Chopper SILVER EAGLE (LT1800) | Mowers | – | (Naturally Aspirated Gas HP 18 Mfr Kohler ) |
| Dixie Chopper SILVER EAGLE (LT2000) | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper SILVER EAGLE (LT2000) | Mowers | – | (Naturally Aspirated MAGNAM Gas HP 20 Mfr Kohler ) |
| Dixie Chopper SILVER EAGLE (LT2300) | Mowers | – | (Naturally Aspirated Gas HP 23 Mfr Kohler ) |
| Dixie Chopper X2000-50 | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper X2002-50 | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper X2500-50 | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixie Chopper X2502-50 | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixie Chopper XF2500-60 | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixie Chopper XW2000-60 | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper XW2002-60 | Mowers | – | (Naturally Aspirated Gas HP 20 Mfr Kohler ) |
| Dixie Chopper XW2500-60 | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixie Chopper XW2502-60 | Mowers | – | (Naturally Aspirated Gas HP 25 Mfr Kohler ) |
| Dixon GRIZZLY | Mowers | – | w/ |
| Dixon KODIAK | Mowers | – | w/ |
| Dixon MOUNTAIN KODIAK | Mowers | – | w/ |
| Dixon RAM 44 MAG | Mowers | – | w/ |
| Dixon RAM 50 MAG | Mowers | – | w/ |
| Dixon RAMZTR 52 ZT | Mowers | – | V2 |
| Dixon SILVERTIP | Mowers | – | w/ |
| Dixon SPEEDZTR44 | Mowers | – | w/ |
| Dixon ZTR2560 | Mowers | – | w/ |
| Dixon ZTR4516K | Mowers | – | w/ |
| Dixon ZTR5022 | Mowers | – | w/ |
| Dixon ZTR5423 | Mowers | – | w/ |
| Dixon ZTR5502 | Mowers | – | w/ |
| Dixon ZTR5601 | Mowers | – | w/ |
| Dixon ZTR6022 | Mowers | – | w/ |
| Dixon ZTR6025 | Mowers | – | w/ |
| Dixon ZTR6601 | Mowers | – | w/ |
| Dixon ZTR7525 | Mowers | – | w/ |
| Earthforce EF1 | Loaders | – | (CH25 Mfr Kohler ) |
| Exmark EXPLORER | Mowers | – | (CH20 Mfr Kohler ) |
| Exmark EXPLORER | Mowers | – | (CV20 Mfr Kohler ) |
| Exmark EXPLORER | Mowers | – | (MV18 Mfr Kohler ) |
| Exmark FRONTRUNNER | Mowers | – | (CH23 Mfr Kohler ) |
| Exmark FRONTRUNNER | Mowers | – | (CH740 Mfr Kohler ) |
| Exmark FRONTRUNNER | Mowers | – | (Mfr Kohler ) |
| Exmark LAZER Z | Mowers | – | (CH22 Mfr Kohler ) |
| Exmark LAZER Z | Mowers | – | (CH23 Mfr Kohler ) |
| Exmark LAZER Z | Mowers | – | (CH25 Mfr Kohler ) |
| Exmark LAZER Z | Mowers | – | (CH740 Mfr Kohler ) |
| Exmark LAZER Z | Mowers | – | (Mfr Kohler ) |
| Exmark LAZER Z AS | Mowers | – | (CH730 Mfr Kohler ) |
| Exmark LAZER Z EPS | Mowers | – | (CH26 Mfr Kohler ) |
| Exmark LAZER Z HP | Mowers | – | (CV18 Mfr Kohler ) |
| Exmark LAZER Z HP | Mowers | – | (CV20 Mfr Kohler ) |
| Exmark LAZER Z HP | Mowers | – | (CV22 Mfr Kohler ) |
| Exmark LAZER Z HP | Mowers | – | (HP 18 Mfr Kohler ) |
| Exmark LAZER Z HP | Mowers | – | (Naturally Aspirated CV740 Gas Mfr Kohler ) |
| Exmark NAVIGATOR | Mowers | – | (CH20 Mfr Kohler ) |
| Exmark NAVIGATOR | Mowers | – | (CH740 Mfr Kohler ) |
| Exmark TURF RANGER | Mowers | – | (CV18 Mfr Kohler ) |
| Exmark TURF RANGER | Mowers | – | (CV22 Mfr Kohler ) |
| Exmark TURF RANGER | Mowers | – | (MV18 Mfr Kohler ) |
| Exmark TURF TRACER | Mowers | – | (CV18 Mfr Kohler ) |
| Exmark TURF TRACER | Mowers | – | (CV22 Mfr Kohler ) |
| Exmark TURF TRACER | Mowers | – | (MV18 Mfr Kohler ) |
| Exmark TURF TRACER | Mowers | – | (MV20 Mfr Kohler ) |
| Ferris IS2000Z SERIES (ZERO TURN) | Mowers | – | w / Kohler CV740 Eng. |
| Ferris IS3100Z SERIES (ZERO TURN) | Mowers | – | w / Kohler CV750 Eng. |
| Ferris PRO CUT SERIES (3 WHEEL RIDERS) | Mowers | – | w / Kohler CH22 Eng. |
| Ferris PRO CUT SERIES (3 WHEEL RIDERS) | Mowers | – | w / Kohler CH25 Eng. |
| Ferris PRO CUT SERIES (3 WHEEL RIDERS) | Mowers | – | w / Kohler CV23 Eng. |
| Fiat X-1/9 | – | 1983 – 1983 | L4 2.0L 1995cc |
| Ford LS25 | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford LS35 | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford LS45 | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford LS55 | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford YT12.5 | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford YT14 | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford YT16 | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford YT16H | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Ford YT18H | Wheel Tractors (Including Lawn & Garden) | – | w / Kohler Eng. |
| Gehl 1438 | Pavers | – | w / Kohler 25 HP Eng. |
| Gomaco C450 FINISHER | Paving Equipment | – | w / Kohler 20 HP Eng. |
| Grasshopper 220 | Lawn Mowers | – | w / Kohler 20 HP Eng. |
| Grasshopper 223 | Lawn Mowers | – | V 2 |
| Grasshopper 618 | Lawn Mowers | – | w / Kohler 18 HP Eng. |
| Grasshopper 620T | Lawn Mowers | – | w / Kohler 20 HP Eng. |
| Grasshopper 720K | Lawn Mowers | – | w / Kohler 20 HP Eng. |
| Grasshopper 723K | Lawn Mowers | – | V 2 |
| Grasshopper 725K | Lawn Mowers | – | w / Kohler 25 HP Eng. |
| Gravely 152Z (MOWER) | Tractors | – | w / Kohler CV730 Eng. |
| Gravely 160Z (MOWER) | Tractors | – | w / Kohler CV730 Eng. |
| Gravely 252Z (MOWER) | Tractors | – | w / Kohler CV740 Eng. |
| Gravely 260Z (MOWER) | Tractors | – | w / Kohler CV740 Eng. |
| Gravely 320HD (MOWER) | Tractors | – | w / Kohler CV740 Eng. |
| Gravely HYDRO PRO 20 (MOWER) | Tractors | – | w / Kohler CV20S Eng. |
| Gravely PM260Z (MOWER) | Tractors | – | w / Kohler CV740 Eng. |
| Gravely PM300 (MOWER) | Tractors | – | w / Kohler CV25 Eng. |
| Gravely PRO 18 (MOWER) | Tractors | – | w / Kohler CV18 Eng. |
| Gravely PRO CHIP 618R (CHIPPER) | Tractors | – | w / Kohler CH18 Eng. |
| Gravely PRO CHIP 625 (CHIPPER) | Tractors | – | w / Kohler CH25 Eng. |
| Gravely PROMASTER 200 (MOWER) | Tractors | – | w / Kohler CV20S Eng. |
| Gravely PROMASTER 300 (MOWER) | Tractors | – | w / Kohler CV22 Eng. |
| Gravely PROMASTER-TURF (MOWER) | Tractors | – | w / Kohler CV18 Eng. |
| Gravely PROMASTER-ZERO (MOWER) | Tractors | – | w / Kohler CV18 Eng. |
| Gravely ZT-HD SERIES | Tractors | – | w / Kohler KT735 Eng. |
| Gravely ZT-HD SERIES | Tractors | – | w / Kohler KT740 Eng. |
| Great Dane CHARIOT XL | Mowers | – | w / Kohler CV25 Eng. |
| Great Dane CHARIOT XL | Mowers | – | w / Kohler CV740 Eng. |
| Great Dane CHARIOT XL | Mowers | – | w / Kohler CV745 Eng. |
| Great Dane GATEWAY | Mowers | – | w / Kohler CV22 Eng. |
| Great Dane SCAMPER | Mowers | – | w / Kohler CV18 Eng. |
| Great Dane SUPER SURFER | Mowers | – | w / Kohler CV18 Eng. |
| Great Dane SURFER | Mowers | – | w / Kohler CV22 Eng. |
| Harper ATM-725 (DEWEZE) | Lawn & Garden Equipment | – | w / Kohler CH25 Eng. |
| Harper MC70 (DEWEZE) | Lawn & Garden Equipment | – | w / Kohler M20 Eng. |
| Hatz 2G40 | Engines | – | – |
| Hitachi ZX20U | Excavators (ZX models are Zaxis) | – | w / Shibaura C2702 Engine |
| Hitachi ZX20UR | Excavators (ZX models are Zaxis) | – | w / Shibaura C2702 Engine |
| Hobart CHAMPION 10000 | Welders | – | w / Kohler CH23 Gas Engine |
| Hobart CHAMPION ELITE | Welders | – | w / Kohler CH23 Gas Engine |
| Hobart CHAMPION ELITE | Welders | – | w / Kohler CH680 Gas Engine |
| Husqvarna EZ5224 | Lawn Tractors | – | w / Kohler Engine |
| Husqvarna MZ5225T | Lawn Tractors | – | w / Kohler Engine |
| Husqvarna PZ6030CV | Lawn Tractors | – | w / Kohler Engine |
| Husqvarna RZ4623 | Lawn Tractors | – | w / Kohler Engine |
| Husqvarna RZ5424 | Lawn Tractors | – | w / Kohler Engine |
| Husqvarna YT42DXLS | Lawn Tractors | – | V2 725cc (44.2 CID) Kohler |
| Husqvarna YT42LS | Lawn Tractors | – | V2 725cc (44.2 CID) Kohler |
| Husqvarna YT42XLS | Lawn Tractors | – | V2 725cc (44.2 CID) Kohler |
| Husqvarna YTH180 | Lawn Tractors | – | w / Kohler Engine |
| Husqvarna YTH20K42 | Lawn Tractors | – | V2 0.725L 725CC 44CID |
| Husqvarna YTH20K46 | Lawn Tractors | – | V2 0.725L 725CC 44CID |
| Husqvarna YTH21K46 | Lawn Tractors | – | w / Kohler Engine |
| Hustler 2500 | Lawn Tractors | – | – |
| Hustler 3000 | Lawn Tractors | – | – |
| Hustler ATZ SERIES MOWERS | Lawn Tractors | – | – |
| Hustler DIESEL Z SERIES MOWERS | Lawn Tractors | – | – |
| Hustler FASTRAK SERIES | Lawn Tractors | – | – |
| Hustler MINI FASTRAK SERIES | Lawn Tractors | – | – |
| Hustler MINI Z SERIES | Lawn Tractors | – | – |
| Hustler SHORTCUT 1500 SERIES | Lawn Tractors | – | – |
| Hustler SUPER Z SERIES MOWERS | Lawn Tractors | – | – |
| Hustler Z SERIES MOWERS | Lawn Tractors | – | – |
| Ihc Harvester (Ihc) CUB CADET 1315 | Lawn & Garden (Also See Cub Cadet) | – | w / Kohler 12.5 HP Engine |
| Ihc Harvester (Ihc) CUB CADET 1320 | Lawn & Garden (Also See Cub Cadet) | – | w / Kohler 12.5 HP Engine |
| Jacobsen GA-30 | Mowers & Turf Equipment | – | V2 624CC 38.1CID |
| John Deere 2148HV | Tractors (Includes Lawn & Garden) | – | w / Kohler 21 HP Eng. |
| John Deere 2354HV | Tractors (Includes Lawn & Garden) | – | w / Kohler 23 HP Eng. |
| John Deere 2554HV | Tractors (Includes Lawn & Garden) | – | w / Kohler 25 HP Eng. |
| John Deere F620 | Tractors (Includes Lawn & Garden) | – | – |
| John Deere F680 | Tractors (Includes Lawn & Garden) | – | – |
| John Deere WALK-BEHIND GS75 COMMERCIAL | Tractors (Includes Lawn & Garden) | – | w / Kohler Eng. |
| Kioti ZXC48 SE | Tractors | – | w / 0.694L 694CC 42CID |
| Kioti ZXC54 | Tractors | – | w/0.70L 700CC 43CID |
| Kioti ZXC54 SE | Tractors | – | W / 0.694L 694CC 42CID |
| Kioti ZXC60 SE | Tractors | – | w / 0.75L 750CC 46CID |
| Kioti ZXR48 SE | Tractors | – | W / 0.73L 730CC 45CID |
| Kioti ZXR54 SE | Tractors | – | W / 0.75L 750CC 46CID |
| Kioti ZXR60 SE | Tractors | – | w / 0.75L 750CC 46CID |
| Kohler 15 HP OHV | Engines | – | – |
| Kohler 18 HP COMMAND | Engines | – | – |
| Kohler 18 HP COMMAND PRO | Engines | – | – |
| Kohler 20 HP COMMAND | Engines | – | – |
| Kohler 22 HP AEGIS | Engines | – | – |
| Kohler 25 HP AEGIS | Engines | – | – |
| Kohler 25 HP COMMAND | Engines | – | – |
| Kohler 26 HP COMMAND PRO V-TWIN | Engines | – | – |
| Kohler 26 HP COURAGE V-TWIN | Engines | – | – |
| Kohler 27 HP AEGIS | Engines | – | – |
| Kohler 27 HP COMMAND PRO V-TWIN | Engines | – | – |
| Kohler 29 HP AEGIS | Engines | – | – |
| Kohler CH17 | Engines | – | – |
| Kohler CH18 | Engines | – | – |
| Kohler CH20 | Engines | – | – |
| Kohler CH20S | Engines | – | – |
| Kohler CH22 | Engines | – | – |
| Kohler CH22S | Engines | – | – |
| Kohler CH23 | Engines | – | – |
| Kohler CH23S | Engines | – | – |
| Kohler CH25 | Engines | – | – |
| Kohler CH26 | Engines | – | – |
| Kohler CH620 Command Pro | Engines | – | – |
| Kohler CH621 Command Pro | Engines | – | – |
| Kohler CH640 Command Pro | Engines | – | – |
| Kohler CH641 Command Pro | Engines | – | – |
| Kohler CH680 Command Pro | Engines | – | – |
| Kohler CH682 Command Pro | Engines | – | – |
| Kohler CH730 | Engines | – | – |
| Kohler CH732 | Engines | – | – |
| Kohler CH740 | Engines | – | – |
| Kohler CH742 | Engines | – | – |
| Kohler CH752 | Engines | – | – |
| Kohler CV11 | Engines | – | – |
| Kohler CV14 | Engines | – | – |
| Kohler CV16S | Engines | – | – |
| Kohler CV17 | Engines | – | – |
| Kohler CV18 | Engines | – | – |
| Kohler CV20 | Engines | – | – |
| Kohler CV20S | Engines | – | – |
| Kohler CV22 | Engines | – | – |
| Kohler CV23 | Engines | – | – |
| Kohler CV25 | Engines | – | – |
| Kohler CV460 | Engines | – | – |
| Kohler CV492 | Engines | – | – |
| Kohler CV493 | Engines | – | – |
| Kohler CV682 | Engines | – | – |
| Kohler CV730 | Engines | – | – |
| Kohler CV732 | Engines | – | – |
| Kohler CV740 | Engines | – | – |
| Kohler CV742 | Engines | – | – |
| Kohler CV750 | Engines | – | – |
| Kohler ECH440 Command Pro EFI | Engines | – | – |
| Kohler ECH630 Command Pro EFI | Engines | – | – |
| Kohler ECH650 Command Pro EFI | Engines | – | – |
| Kohler ECH680 Command Pro EFI | Engines | – | – |
| Kohler ECH730 Command Pro EFI | Engines | – | – |
| Kohler ECH740 Command Pro EFI | Engines | – | – |
| Kohler ECH749 Command Pro EFI | Engines | – | – |
| Kohler KT715 | Engines | – | – |
| Kohler KT725 | Engines | – | – |
| Kohler KT730 | Engines | – | – |
| Kohler KT735 | Engines | – | – |
| Kohler KT740 | Engines | – | – |
| Kohler KT745 | Engines | – | – |
| Kohler LH630 | Engines | – | – |
| Kohler LH640 | Engines | – | – |
| Kohler LH685 | Engines | – | – |
| Kohler LH690 | Engines | – | – |
| Kohler LH755 | Engines | – | – |
| Kohler LH760 | Engines | – | – |
| Kohler LH775 | Engines | – | – |
| Kohler SV610 | Engines | – | – |
| Kohler SV720 | Engines | – | – |
| Kohler TH16 | Engines | – | – |
| Kohler TH18 (OHC) | Engines | – | – |
| Kohler 11RMY | Generator Sets | – | w / Kohler CH25 Eng. |
| Kohler 12RES | Generator Sets | – | w / Kohler CH740 Eng. |
| Kohler 12RESL | Generator Sets | – | w / Kohler CH740 Eng. |
| Kohler 12RESM1 | Generator Sets | – | w / Kohler CH740 Eng. |
| Kohler 12RESNT | Generator Sets | – | w / Kohler CH740 Eng. |
| Kohler 12TRES | Generator Sets | – | w / Kohler CH740 Eng. |
| Kohler 14RESA | Generator Sets | – | w / Kohler CH740 Eng. |
| Kohler 14RESAL | Generator Sets | – | w / Kohler CH740 Eng. |
| Kohler 8.5RES | Generator Sets | – | w / Kohler CH640 Eng. |
| Kohler 8.5RMY | Generator Sets | – | w / Kohler CH20 Eng. |
| Kubota GR2000G | Tractors (Includes Lawn & Garden) | – | L2 0.624L 624CC 38CID |
| Kubota GR2010G | Tractors (Includes Lawn & Garden) | – | L2 0.624L 624CC 38CID |
| Kubota GR2010GA | Tractors (Includes Lawn & Garden) | – | L2 0.624L 624CC 38CID |
| Kubota GR2010GB | Tractors (Includes Lawn & Garden) | – | L2 0.624L 624CC 38CID |
| Kubota GR2020G | Tractors (Includes Lawn & Garden) | – | L2 0.624L 624CC 38CID |
| Kubota GR2020GB | Tractors (Includes Lawn & Garden) | – | L2 0.624L 624CC 38CID |
| Kubota T1880 | Tractors (Includes Lawn & Garden) | – | L1 0.534L 534CC 33CID |
| Kubota T1880A | Tractors (Includes Lawn & Garden) | – | L1 0.534L 534CC 33CID |
| Kubota T2080 | Tractors (Includes Lawn & Garden) | – | L2 0.724L 724CC 44CID |
| Kubota T2080A | Tractors (Includes Lawn & Garden) | – | L2 0.724L 724CC 44CID |
| Kubota T2380 | Tractors (Includes Lawn & Garden) | – | L2 0.724L 724CC 44CID |
| Kubota T2380A | Tractors (Includes Lawn & Garden) | – | L2 0.724L 724CC 44CID |
| Kubota Z723KH | Tractors (Includes Lawn & Garden) | – | V2 0.694L 694CC 42CID |
| Kubota Z724KH | Tractors (Includes Lawn & Garden) | – | V2 0.694L 694CC 42CID |
| Kubota Z725KH | Tractors (Includes Lawn & Garden) | – | V2 0.747L 747CC 46CID |
| Lastec 2761 SERIES | Mowing Equipment | – | w / Kohler CH740 Eng. |
| Lastec 2861 SERIES | Mowing Equipment | – | w / Kohler CH745 Eng. |
| Lastec 325 ARTICULATOR SERIES | Mowing Equipment | – | w / Kohler CH25 Eng. |
| Lincoln Electric EAGLE 10,000 | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lincoln Electric EAGLE 10,000 | Welders | – | w / Kohler CH23S Eng. |
| Lincoln Electric EAGLE 10,000 PLUS | Welders | – | w / Kohler CH23S Eng. |
| Lincoln Electric GX271 CHOPPER RED-D-ARC | Welders | – | w / Kohler CH20 Eng. |
| Lincoln Electric GX300 RED-D-ARC | Welders | – | w / Kohler CH22 Eng. |
| Lincoln Electric RANGER 10,000 | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lincoln Electric RANGER 10,000 PLUS | Welders | – | w / Kohler CH23S Eng. |
| Lincoln Electric RANGER 225 | Welders | – | w / Kohler CH23S Eng. |
| Lincoln Electric RANGER 225 GXT | Welders | – | w / Kohler CH23S Eng. |
| Lincoln Electric RANGER 250 | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lincoln Electric RANGER 250 GXT | Welders | – | w / Kohler CH23S Eng. |
| Lincoln Electric RANGER 250 LPG | Welders | – | w / Kohler CH730S Eng. |
| Lincoln Electric RANGER 275 | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lincoln Electric RANGER 3 PHASE | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lincoln Electric RANGER 305 LPG | Welders | – | w / Kohler CH730S Eng. |
| Lincoln Electric RANGER 305G | Welders | – | w / Kohler CH22 Eng. |
| Lincoln Electric RANGER 8 | Welders | – | w / Kohler CH18F Eng. |
| Lincoln Electric RANGER 8 | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lincoln Electric RANGER 9 | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lincoln Electric RANGER AIR 260MPX | Welders | – | V2 747CC 46CID |
| Lincoln Electric RANGER AIR 330MPX | Welders | – | V2 747CC 46CID |
| Lincoln Electric WELDANPOWER G8000 | Welders | – | w / Kohler CH18S Eng. |
| Lincoln Electric ZR8 RED-D-ARC | Welders | – | w / Kohler CH20S Command Pro Eng. |
| Lister LPA2 | Diesel Engine | – | – |
| Lister PW2 | Diesel Engine | – | – |
| Lister PWS2 | Diesel Engine | – | – |
| Mauldin 1450 | Equipment | – | w / Gas CH18S Eng. |
| Mauldin 1450S | Equipment | – | w / Gas CH18S Eng. |
| Mauldin 3000 | Equipment | – | w / Gas CH18S Eng. |
| Mauldin 4000 | Equipment | – | w / Gas CH18S Eng. |
| Mauldin 4700 | Equipment | – | w / Gas CH18S Eng. |
| Mauldin MU300 | Equipment | – | w / Gas CH18S Eng. |
| Mauldin MU600 | Equipment | – | w / Gas CH18S Eng. |
| Miller Electric BLUE STAR 180K | Welder | – | w / Kohler 12.5 HP Command Eng. |
| Miller Electric BOBCAT 225 | Welder | – | w / Kohler CH20 Eng. |
| Miller Electric BOBCAT 225 | Welder | – | w / Kohler CH23 Eng. |
| Miller Electric BOBCAT 225 | Welder | – | w / Kohler CH680 Eng. |
| Miller Electric BOBCAT 225 | Welder | – | w / Kohler CH730 Eng. |
| Miller Electric BOBCAT 225G PLUS | Welder | – | w / Kohler CH18 Eng. |
| Miller Electric BOBCAT 225NT | Welder | – | w / Kohler CH20 Eng. |
| Miller Electric BOBCAT 250 | Welder | – | w / Kohler 18 HP Eng. |
| Miller Electric BOBCAT 250 | Welder | – | w / Kohler 20 HP Eng. |
| Miller Electric BOBCAT 250 | Welder | – | w / Kohler CH23 Eng. |
| Miller Electric BOBCAT 250 | Welder | – | w / Kohler CH680 Eng. |
| Miller Electric BOBCAT 250 | Welder | – | w / Kohler CH730 Eng. |
| Miller Electric BOBCAT 250NT | Welder | – | w / Kohler CH18 Eng. |
| Miller Electric BOBCAT 250NT | Welder | – | w / Kohler CH20 Eng. |
| Miller Electric BOBCAT 3 PHASE | Welder | – | w / Kohler CH23 Eng. |
| Miller Electric BOBCAT 3 PHASE | Welder | – | w / Kohler CH680 Eng. |
| Miller Electric BOBCAT 3 PHASE | Welder | – | w / Kohler CH730 Eng. |
| Miller Electric MILLER LEGEND 301G | Welder | – | w / Kohler CH20 Eng. |
| Miller Electric MILLER LEGEND 302 | Welder | – | w / Kohler CH20 Eng. |
| Miller Electric MILLER LEGEND 302 | Welder | – | w / Kohler CH23 Eng. |
| Miller Electric TRAILBLAZER 275 DC | Welder | – | w / Kohler CH23 Eng. |
| Miller Electric TRAILBLAZER 275 DC | Welder | – | w / Kohler CH730 Eng. |
| Miller Electric TRAILBLAZER 280 NT | Welder | – | w / Kohler CH20 Eng. |
| Miller Electric TRAILBLAZER 301G | Welder | – | w / Kohler CH20 Eng. |
| Miller Electric TRAILBLAZER 302 | Welder | – | w / Kohler CH23 Eng. |
| Miller Electric TRAILBLAZER 302 | Welder | – | w / Kohler CH730 Eng. |
| Miller Electric TRAILBLAZER 302 AIR PAK | Welder | – | w / Kohler CH750 Eng. |
| Miller Electric TRAILBLAZER 325 | Welder | – | w / Kohler CH730 Eng. |
| Miller Electric TRAILBLAZER DC | Welder | – | w / Kohler CH20 Eng. |
| New Holland G4010 | Lawn & Garden Tractors | – | w / Kohler 19 HP Eng. |
| New Holland G4020 | Lawn & Garden Tractors | – | w / Kohler 21 HP Eng. |
| New Holland G4030 | Lawn & Garden Tractors | – | w / Kohler 23 HP Eng. |
| New Holland G4035 | Lawn & Garden Tractors | – | w / Kohler SV730 Eng. |
| New Holland GT18 | Lawn & Garden Tractors | – | w / Kohler Eng. |
| New Holland GT20 (AIR-COOLED) | Lawn & Garden Tractors | – | w / Kohler 20 HP Eng. |
| New Holland GT20A | Lawn & Garden Tractors | – | w / Kohler 20 HP Eng. |
| New Holland GT22 | Lawn & Garden Tractors | – | w / Kohler Eng. |
| New Holland GT22A | Lawn & Garden Tractors | – | w / Kohler 22 HP Eng. |
| New Holland LS140 | Lawn & Garden Tractors | – | w / Kohler Eng. |
| New Holland LS25 | Lawn & Garden Tractors | – | w / Kohler 12.5 HP Eng. |
| New Holland LS35 | Lawn & Garden Tractors | – | w / Kohler 15 HP Eng. |
| New Holland LS45 | Lawn & Garden Tractors | – | w / Kohler 16 HP Eng. |
| New Holland LS55 | Lawn & Garden Tractors | – | w / Kohler 19 HP Eng. |
| New Holland MC35 | Lawn & Garden Tractors | – | w / 35 HP Diesel Eng. |
| New Holland MY16 | Lawn & Garden Tractors | – | w / Kohler 16 HP Eng. |
| New Holland MY17 | Lawn & Garden Tractors | – | w / Kohler 17 HP Eng. |
| New Holland MY19 | Lawn & Garden Tractors | – | w / Kohler 19 HP Eng. |
| New Holland C175 | Loaders | – | 2.2L 2212cc 135 CID |
| New Holland L120 (SKID STEER) | Loaders | – | w / Kohler CH18 Eng. |
| New Holland L175 | Loaders | – | 2.2L 2212cc 135 CID |
| New Holland WORKMASTER 55 | Tractors | – | L4 |
| New Holland WORKMASTER 75 | Tractors | – | L4 |
| Ransomes G-PLEX II SERIES | Mowers | – | w / Kohler CH18 Eng. |
| Rayco RG13 STUMP CUTTER | Forestry Equipment | – | w / Kohler 13 HP Command Eng. |
| Rayco RG1625 STUMP CUTTER | Forestry Equipment | – | w / Kohler 25 HP Command Eng. |
| Rayco RG20 STUMP CUTTER | Forestry Equipment | – | w / Kohler 20 HP Command Eng. |
| Rayco RG20HD STUMP CUTTER | Forestry Equipment | – | w / Kohler 20 HP Command Eng. |
| Scag COUGAR | Mowers | – | w / Kohler 25 HP Command Eng. |
| Scag SCZ CHEETAH | Mowers | – | V2 0.725L 725CC 44CID |
| Scag SCZ CHEETAH | Mowers | – | w / Kohler CV730 Eng. |
| Scag STTII-52V-26CH-EFI | Mowers | – | W/ |
| Scag SW | Mowers | – | w / Kohler CV18 Eng. |
| Scag SWZ | Mowers | – | w / Kohler CV18 Eng. |
| Scag TIGER CUB | Mowers | – | w / Kohler CV20 Eng. |
| Scag TIGER CUB | Mowers | – | w / Kohler CV23 Eng. |
| Scag TURF TIGER | Mowers | – | w / Kohler CH25 Eng. |
| Simplicity DERBY STALLION | Mowers | – | w / Kohler CH22 Eng. |
| Smithco SPRAY STAR (SPRAYER) | Turf Equipment | – | w / Kohler CH20S Command Pro Eng. |
| Smithco SPRAY STAR (SPRAYER) | Turf Equipment | – | w / Kohler CH25S Eng. |
| Smithco SPRAY STAR (SPRAYER) | Turf Equipment | – | w / Kohler M20 Eng. |
| Smithco SUPER STAR (GROOMER) | Turf Equipment | – | w / Kohler CV18 Eng. |
| Smithco SUPER STAR (GROOMER) | Turf Equipment | – | w / Kohler CV25 Eng. |
| Smithco SUPREME (GROOMER) | Turf Equipment | – | w / Kohler TH18S Eng. |
| Smithco SUPREME (GROOMER) | Turf Equipment | – | w / Kohler TH520 Eng. |
| Smithco SWEEP STAR (SWEEPER) | Turf Equipment | – | w / Kohler CH20 Eng. |
| Smithco SWEEP STAR (SWEEPER) | Turf Equipment | – | w / Kohler CH25S Eng. |
| Smithco SWEEP STAR (SWEEPER) | Turf Equipment | – | w / Kohler TH18S Eng. |
| Snapper PROCRUISER | Lawn & Garden | – | w / |
| Snapper RIDER | Lawn & Garden | – | w / Kohler Eng. |
| Snapper YARD CRUISER | Lawn & Garden | – | w / Kohler 15 HP Eng. |
| Terex 700 WOODSMAN | Chippers | – | w / Kohler CV750 Eng. |
| Terramite T5C BACKHOE/LOADER | Equipment | – | w / Kohler 20 HP Command Eng. |
| Terramite T5D BACKHOE/LOADER | Equipment | – | w / Kohler 20 HP Command Eng. |
| Terramite T7 | Equipment | – | w / Kohler 20 HP Eng. |
| Thomas 25G MINI-SKID STEER | Loaders | – | w / Kohler Command Eng. |
| Thomas 25G1 MINI-SKID STEER | Loaders | – | w / Kohler Command Eng. |
| Thomas 25GT MINI-SKID STEER | Loaders | – | w / Kohler Command Eng. |
| Toro DINGO 322 | – | – | w / Kohler Command 22 HP Engine |
| Toro DINGO TX420 | – | – | w / Kohler Command 20 HP Engine |
| Toro DINGO TX425 | – | – | w / Kohler Command 25 HP Engine |
| Toro MULTI PRO 1100 | Tractors & Turf Equipment | – | w / Kohler Eng. |
| Toro RAKE-O-VAC | Tractors & Turf Equipment | – | w / Kohler Eng. |
| Toro WORKMAN 1100 | Tractors & Turf Equipment | – | w / Kohler 12 HP Eng. |
| Toro WORKMAN 1110 | Tractors & Turf Equipment | – | w / Kohler 12 HP Eng. |
| Toro WORKMAN 3100 | Tractors & Turf Equipment | – | w / Kohler 23 HP Eng. |
| Toro WORKMAN 3120 | Tractors & Turf Equipment | – | w / Kohler Eng. |
| Toro WORKMAN 3130 | Tractors & Turf Equipment | – | w / Kohler Eng. |
| Vermeer BC600XL | Equipment | – | w / Kohler 27 HP Command Eng. |
| Vermeer LM25 | Equipment | – | w / Kohler 25 HP Command Eng. |
| Vermeer MX240 | Equipment | – | w / Kohler 25 HP Command Eng. |
| Vermeer RT200 | Equipment | – | w / Kohler 23 HP Eng. |
| Vermeer V1850 | Equipment | – | w / Kohler 18 HP Command Eng. |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16 (16-470/520) |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-540 |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-550 |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-580 |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-600 |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-610 |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-660 |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-700 |
| Volvo FH 16, FH 16 Classic (93-) | – | – | FH 16-750 |
| Walker MB SERIES | Mowers | – | w / Kohler 18 HP Eng. |
| Walker MBS SERIES | Mowers | – | w / Kohler CH740 Eng. |
| Walker MC SERIES | Mowers | – | w / Kohler CH20 Eng. |
| Walker MC SERIES | Mowers | – | w / Kohler TH16 Eng. |
| Walker MC SERIES | Mowers | – | w / Kohler TH18 Eng. |
| Walker MT/MTL SERIES | Mowers | – | w / Kohler CH20 Eng. |
| Walker MT/MTL SERIES | Mowers | – | w / Kohler CH25 Eng. |
| Walker MT/MTL SERIES | Mowers | – | w / Kohler CH26 Eng. |
| Walker MT/MTL SERIES | Mowers | – | w / Kohler LH685 Eng. |
| Walker MT/MTL SERIES | Mowers | – | w / Kohler LH775 Eng. |
| Woods 6170 | Mowers | – | w / Briggs & Stratton 18 HP Eng. |
| Woods 6182 | Mowers | – | w / Kohler CH18 Eng. |
| Woods 6200 | Mowers | – | w / Kohler CH18 Eng. |
| Woods 6225 | Mowers | – | w / Kohler 25 HP Command Eng. |
| Woods F23 | Mowers | – | w / Briggs & Stratton 23 HP Eng. |
| Woods F25 | Mowers | – | w / Kohler 25 HP Eng. |
| Woods M2050 | Mowers | – | w / Briggs & Stratton 20 HP Eng. |
| Woods M2250 | Mowers | – | w / Briggs & Stratton 20 HP Eng. |
| Woods M2250 | Mowers | – | w / Kohler CH22 Eng. |
| Woods M2560 | Mowers | – | w / Kohler 25 HP Eng. |
| Woods M2760 | Mowers | – | w / Kohler 27 HP Eng. |
| Woods R2048 | Mowers | – | w / Briggs & Stratton 20 HP Eng. |
| Yazoo/Kees MAX 2 (ZVKH SERIES) | Mowers | – | w / Kohler CV740 Eng. |
| Yazoo/Kees MAX 2 (ZVKH SERIES) | Mowers | – | w / Kohler CV750 Eng. |
| Yazoo/Kees MAX 2 (ZVKJ SERIES) | Mowers | – | w / Kohler CV750 Eng. |
| Yazoo/Kees YHRLK23 | Mowers | – | w / Kohler CH25 Eng. |
| Yazoo/Kees ZT MAX (ZKH SERIES) | Mowers | – | w / Kohler CH22 Eng. |
| Yazoo/Kees ZT MAX (ZKH SERIES) | Mowers | – | w / Kohler CH25 Eng. |
| Yazoo/Kees ZT MAX (ZKHP SERIES) | Mowers | – | w / Kohler CH22 Eng. |
| Yazoo/Kees ZT MAX (ZKHP SERIES) | Mowers | – | w / Kohler CH25 Eng. |
| Yazoo/Kees ZT MAX (ZKW SERIES) | Mowers | – | w / Kohler CH22 Eng. |
| Yazoo/Kees ZT MAX (ZKW SERIES) | Mowers | – | w / Kohler CH25 Eng. |
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
WIX filters come with a limited warranty. WIX warrants their filters to be free from defects in materials and workmanship during the recommended service life period. Non-filter products are warranted for a period of one (1) year.
Key Conditions
It is the buyer’s responsibility to determine the correct OEM filter for their application and the proper WIX cross-reference. To file a claim, it must be submitted within 30 days of discovering damage to a WIX representative or distributor. WIX reserves the right to inspect the filter, equipment, and service records.
Warranty Exclusions
The warranty does not cover the following:
- Use in competitive racing, modified high-performance engines, or aviation applications
- Damage or failure caused by improper installation, misuse, modification, accidents, or abuse
- Use of motor oil other than the viscosity and type recommended by the engine or equipment manufacturer
- Filters submitted in a condition that prohibits evaluation and testing
- Costs of repairs not directly attributable to a defective filter
- Towing fees, rental car fees, or other incidental expenses not specifically provided for under the warranty
Liability Limitations
WIX limits liability for special, incidental, or consequential damages, including claims for loss of use of the engine or equipment, loss of time, inconvenience, or commercial loss. The duration and remedies of all implied warranties, including merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty.
Related Products
-
WIX 57488 Spin-On Lube Filter | M27x2 Thread, 5 Micron
$22.26 In Stock -
WIX 57510 Spin-On Lube Filter | M20x1.5 Thread, 35 Micron
$29.22 In Stock -
WIX 57609 Cartridge Lube Metal Canister Filter | 30 Micron
$40.18 In Stock -
WIX 57657 Cartridge Lube Metal Free Filter | 20 Micron
$38.75 In Stock
