Replacement Hydraulic Arm Lift Cylinder for Kubota (PN: 75545-63110) Front Loader Attachments LA452S–TL421

Replacement hydraulic arm lift cylinder for Kubota LA452S–TL421 front loader attachments, replaces OEM 75545-63110.
  • Replacement hydraulic arm lift cylinder for Kubota LA452S–TL421 front loader attachments, replaces OEM 75545-63110.

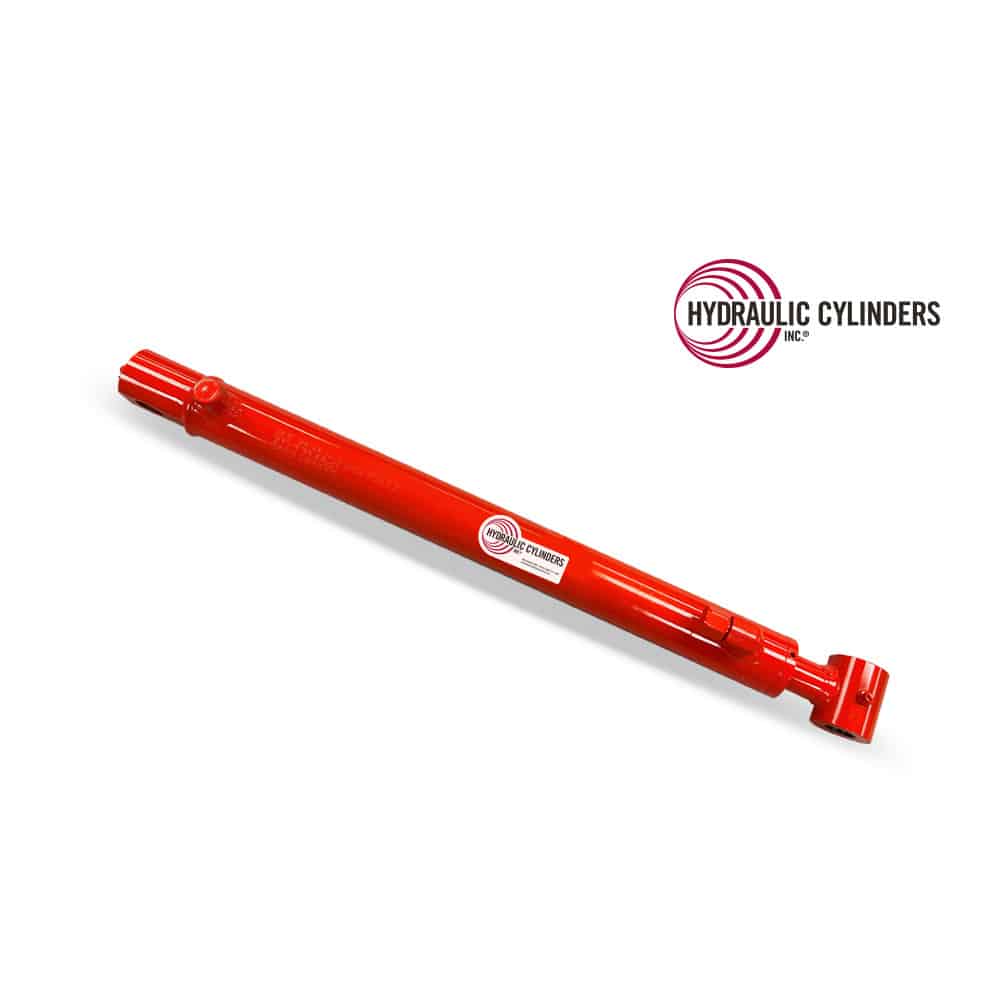

  • 3D render of replacement hydraulic lift cylinder for Kubota LA452S–TL421 front loader attachments, PN 75545-63110, SKU 2055205813.

$865.00

Fast Ship What's This?
Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 2055205813

CategoryReplacement Welded Hydraulic Cylinders » Attachments & Implements » Tractor Attachment
Fits Manufacturer Kubota Hydraulic Cylinders
Models Kubota B21, Kubota L2350DT, Kubota L2350F, Kubota L2600DT, Kubota L2600F, Kubota L2900DT, Kubota L2900DT-GST, Kubota L2900F, Kubota L3000DT, Kubota L3000F, Kubota L3010F, Kubota L3300DT, Kubota L3300DT-GST, Kubota L3300F, Kubota L3410DT, Kubota L3410GST, Kubota L3410HST, Kubota LA450, Kubota LA450A, Kubota LA450S, Kubota LA452S, Kubota LA480, Kubota LA480-C, Kubota LA482, Kubota LB400, Kubota LB400A, Kubota LB402, Kubota TL421
Function Loader Boom Arm lift
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 2055205813
Weight 25.0 lbs
Bore

1.75″
Rod

1.25″
Stroke

17.688″
Closed

26.188″
Open Extended Length

43.875″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Base
Base Pin Size

1.00″
Base Mount Width

1.79″
Rod End Mount Type

Cross-Tube
Rod Pin Size

1.00″
Rod Mount Width

2.375″
Extend Port/Plunger

-8 JIC
Retract Port/Plunger

-8 JIC 90D
Old OEM PNs

75545-63010, 75545-63012, 75545-63200, 75545-63300
12 Month Warranty
Made in USA

Description

Replacement hydraulic lift cylinder Kubota LA452S–TL421 is a direct-fit boom arm lift cylinder for Kubota front end loader attachments. It replaces OEM part number 75545-63110 and restores smooth, even loader lift when you are loading, grading, or back dragging. This cylinder works with Kubota L2000–L3000 tractor loaders using LA452S, LA480, LA480-C, LA482, LB400, LB400A, LB402, or TL421 front loader attachments. Compatible models are below.

High-strength welded construction and a double-acting rod help this cylinder handle daily work in dirt and gravel. Quality seals protect performance under heavy use. Ports and pin dimensions follow OEM specs so installation stays straightforward with your existing hardware and hose routing. Order with FASTSHIP—place your order by 12:00 CST for same-day shipping, keep your Kubota front loader attachment working, and Demolish Downtime.

Bore:

1.75″

Rod:

1.25″

Stroke:

17.688″

Closed:

26.188″

Open Extended Length:

43.875″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

1.00″

Base Mount Width:

1.79″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.00″

Rod Mount Width:

2.375″

Extend Port/Plunger:

-8 JIC

Retract Port/Plunger:

-8 JIC 90D

Old OEM PNs:

75545-63010, 75545-63012, 75545-63200, 75545-63300

LA450S

  • L2350DT
  • L2350F

LA480

  • L2900DT
  • L2900DT-GST
  • L2900F
  • L3300DT
  • L3300DT-GST
  • L3300F

LA480-C

  • L2900DT
  • L2900DT-GST
  • L2900F
  • L3300DT
  • L3300DT-GST
  • L3300F

LA482

  • L3010F
  • L3410DT
  • L3410GST
  • L3410HST

LA450

LB400

  • L2350DT
  • L2350F

LB400A

  • L2350DT
  • L2350F

LB402

  • L2600DT
  • L2600F
  • L3000DT
  • L3000F

TL421

  • B21

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

12 Month Warranty

Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.

Exclusions & Conditions:

  • Disassembly voids warranty coverage.
  • Misuse, misapplication, or unauthorized modification is not covered.
  • HCI does not provide engineering guidance or warrant product fitness for any specific application.
  • It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.

Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
