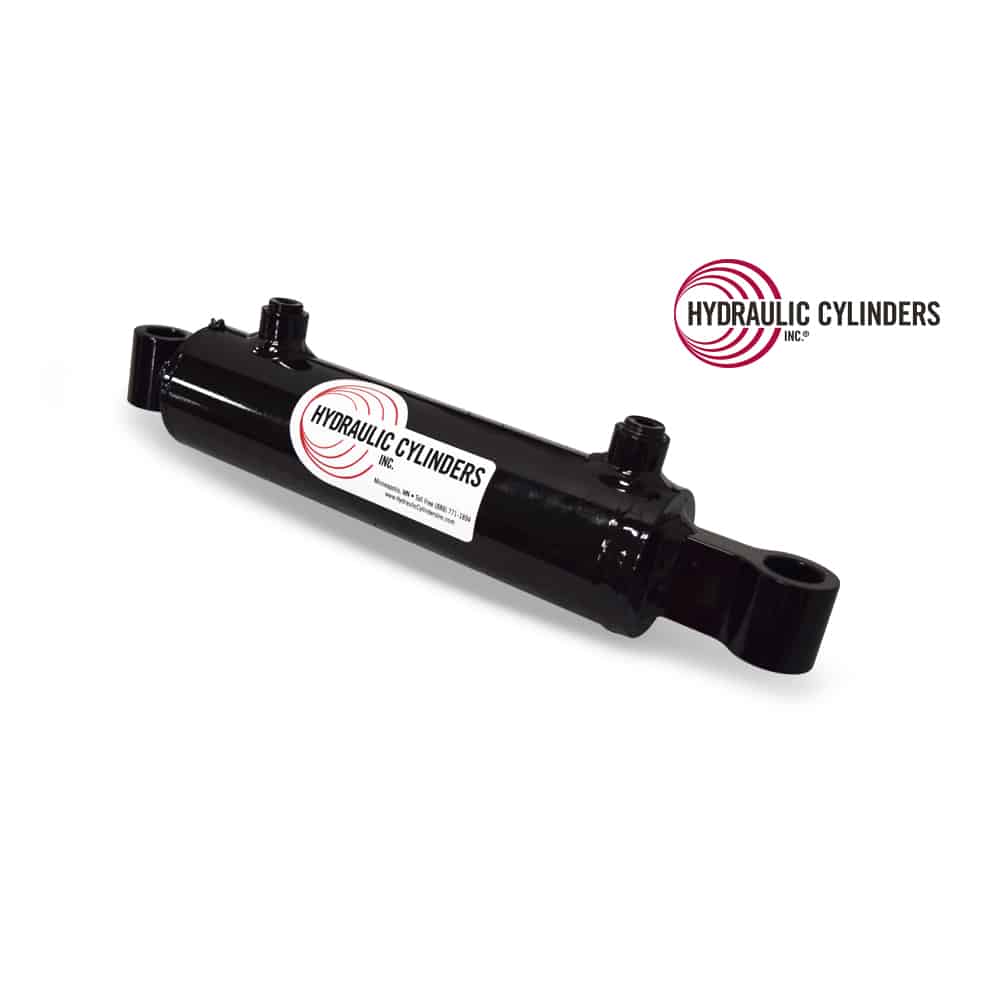

Replacement Hydraulic Blade Angle Cylinder for Kubota (PN: 77700-08404) Tractor Models B2672-BX2787 Series, F5268A, L4556, V4290-V5294A Series

$695.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1694957444

Categories Loader/Tractor, Replacement Welded Rod Hydraulic Cylinders, Tractor Attachment
Fits Manufacturer Kubota Hydraulic Cylinders
Models Kubota B2672, Kubota B2673, Kubota B2745, Kubota B2749, Kubota B2759, Kubota B2763-60, Kubota B2765A, Kubota B2775, Kubota BX2787, Kubota F5268A, Kubota L4556, Kubota V4290, Kubota V4291, Kubota V5290, Kubota V5291, Kubota V5294A
Function Blade Angle
Type Tractor
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1694957444
Weight 23 lbs

Bore

2.00″

Rod

1.00″

Stroke

6.50″

Closed

12.875″

Open Extended Length

19.375″

Operating Pressure (PSI)

3000

Base End Mount Type

Drilled Thru Lug

Base Pin Size

.875″

Base Mount Width

1.375″

Rod End Mount Type

Cross-Tube

Rod Pin Size

.75″

Rod Mount Width

1.50″

Extend Port/Plunger

.375 NPT

Retract Port/Plunger

.375 NPT

Old OEM PNs

70001-00636

Description

Designed to replace OEM part number 77700-08404, this hydraulic angle blade cylinder is built for Kubota models B2672, B2673, B2745, B2749, B2759, B2763-60, B2765A, B2775, BX2787, F5268A, L4556, V4290, V4291, V5290, V5291, and V5294A. This cylinder plays a crucial role in adjusting blade angles for grading, leveling, and snow removal. Meeting or exceeding OEM standards, it ensures smooth operation and long-lasting performance.

Bore:

2.00″

Rod:

1.00″

Stroke:

6.50″

Closed:

12.875″

Open Extended Length:

19.375″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Lug

Base Pin Size:

.875″

Base Mount Width:

1.375″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

.75″

Rod Mount Width:

1.50″

Extend Port/Plunger:

.375 NPT

Retract Port/Plunger:

.375 NPT

Old OEM PNs:

70001-00636
