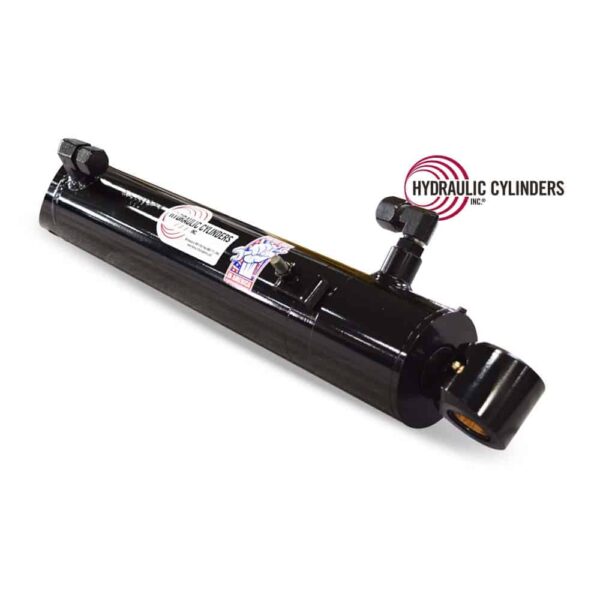

Replacement Hydraulic Bucket Tilt Dump Cylinder for Bobcat (PN: 7104437) Skid Steer Models 630-743 Series
$1,375.00
Specifications for 1009163040
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 630, Bobcat 631, Bobcat 632, Bobcat 641, Bobcat 642, Bobcat 643, Bobcat 645, Bobcat 730, Bobcat 732, Bobcat 741, Bobcat 742, Bobcat 743 |
| Function | Bucket Tilt |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1009163040 |
|---|---|
| Weight | 48.3 lbs |
| Bore | 3.25″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 14.50″ |
| Closed | 21.875″ |
| Open Extended Length | 36.375″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.25″ |
| Base Mount Width | 3.75″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 2.125″ |
| Extend Port/Plunger | -10 JIC 90D |
| Retract Port/Plunger | -10 JIC 90D |
| Old OEM PNs | 6539810 |
Description
Replacement bucket cylinder for Bobcat 630–743 PN 7104437 restores tilt function on early-model skid steers. This double-acting rod hydraulic cylinder delivers smooth dump and rollback motion by applying force in both directions. Built to replace Bobcat OEM part number 7104437, it meets or exceeds original stroke and pressure specs.
It fits Bobcat skid steer models 630, 631, 632, 641, 642, 643, 645, 730, 732, 741, 742, and 743 and provides reliable performance for dirt work, grading, and material handling. This tilt cylinder withstands daily use while maintaining consistent bucket control in demanding conditions.
Use it to replace worn components or upgrade older units for improved performance. Performance-built and warranty-backed for tough job sites. FASTSHIP available—order by 12:00 CST for same-day shipping. Demolish Downtime with a direct-fit cylinder that keeps your bucket in motion.
3.25″
1.50″
14.50″
21.875″
36.375″
3000
Drilled Thru Base
1.25″
3.75″
Cross-Tube
1.25″
2.125″
-10 JIC 90D
-10 JIC 90D
6539810
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
