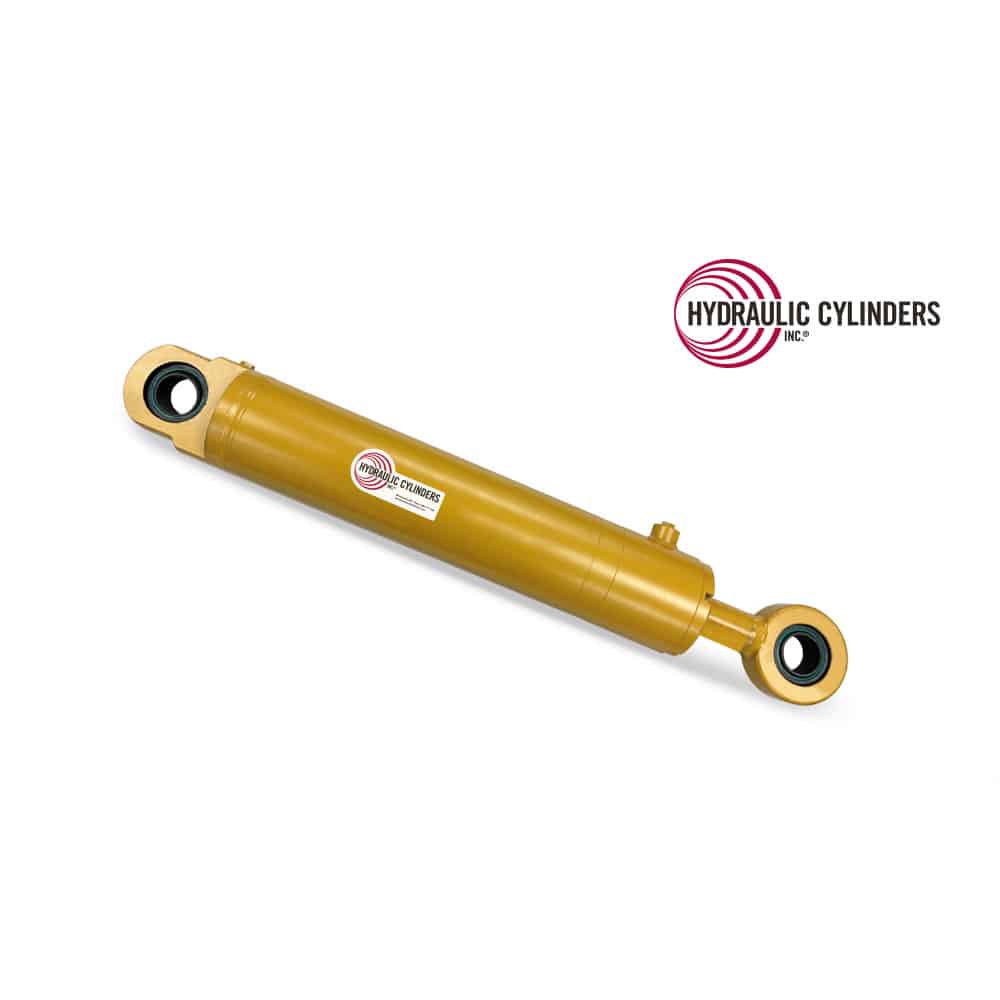

Replacement Hydraulic Steering Cylinder for Caterpillar (PN: 223-1335) Haul Truck Models 740, 745, 745C
$2,200.00
Specifications for 2145965976
| Category | Replacement Welded Rod Hydraulic Cylinders » Dump (Welded Rod) » Haul Truck / Off-Highway / Articulated |
|---|---|
| Fits Manufacturer | Caterpillar |
| Models | Caterpillar 740, Caterpillar 745, Caterpillar 745C |
| Function | Steering |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 2145965976 |
|---|---|
| Weight | 155.0 lbs |
| Bore | 4.50″ |
|---|---|
| Rod | 55mm |
| Stroke | 19.49″ |
| Closed | 35.25″ |
| Open Extended Length | 54.74″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Spherical Bearing |
| Base Pin Size | 2.00″ |
| Base Mount Width | 1.95″ |
| Rod End Mount Type | Spherical Bearing |
| Rod Pin Size | 2.00″ |
| Rod Mount Width | 2.00″ |
| Extend Port/Plunger | -8 SAE ORB |
| Retract Port/Plunger | -8 SAE ORB |
Description
This double-acting welded rod hydraulic cylinder replaces Caterpillar part number 223-1335 and is used for steering on 740, 745, and 745C articulated trucks. It controls articulation between the front and rear frames, allowing precise maneuverability on rugged terrain. Built to meet or exceed OEM specifications, it features spherical bearings and -8 SAE ORB ports for reliable fit and function in demanding off-highway applications. Designed for long service life in severe conditions.
4.50″
55mm
19.49″
35.25″
54.74″
3000
Spherical Bearing
2.00″
1.95″
Spherical Bearing
2.00″
2.00″
-8 SAE ORB
-8 SAE ORB
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
