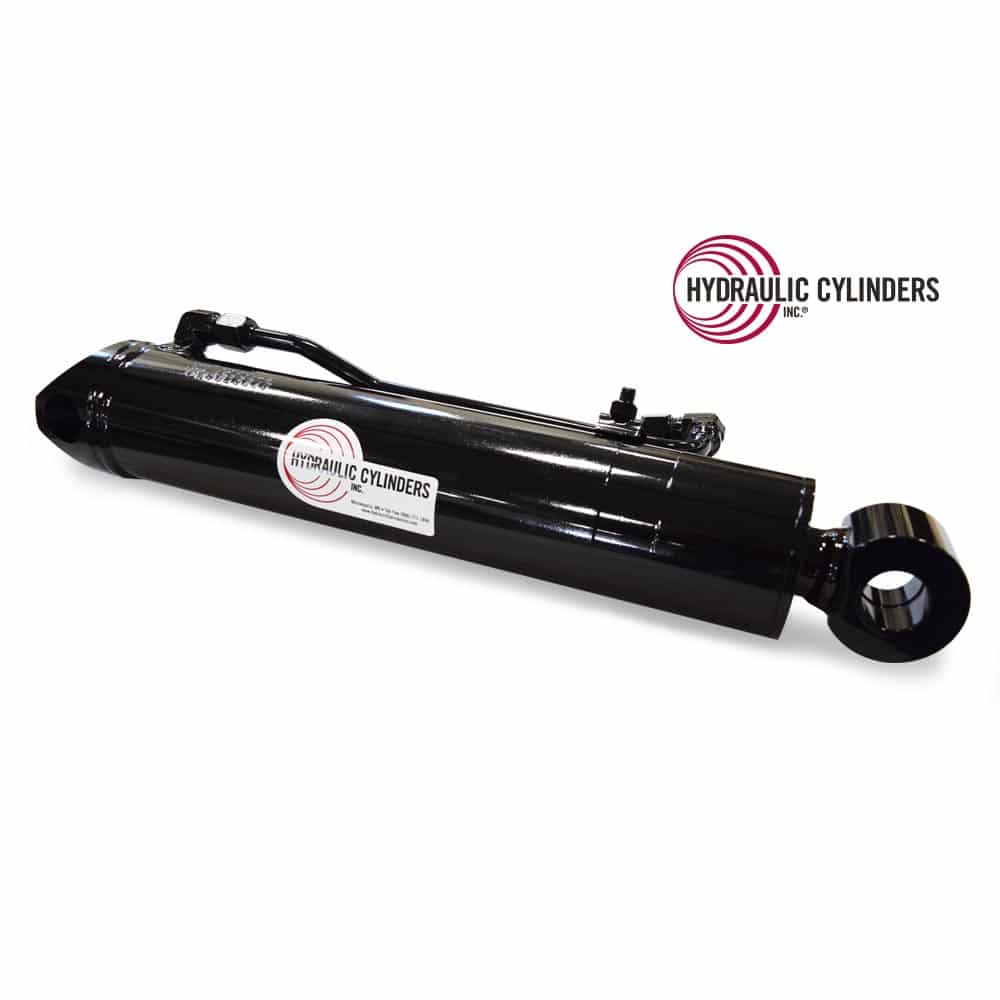

Replacement Hydraulic Bucket Tilt Dump Cylinder for Bobcat (PN: 6589331) Skid Steer Models 520, 530, 533, 540, 542, 543, 553
$1,250.00
Specifications for 1645815840
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer/Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 520, Bobcat 530, Bobcat 533, Bobcat 540, Bobcat 542, Bobcat 543, Bobcat 553 |
| Function | Bucket Tilt |
| Type | Skid Steer/Compact Track Loader |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1645815840 |
|---|---|
| Weight | 53 lbs |
| Bore | 3.00″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 12.25″ |
| Closed | 19.75″ |
| Open Extended Length | 32.00″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.25″ |
| Base Mount Width | 3.75″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 2.00″ |
| Extend Port/Plunger | -8 JIC 90D |
| Retract Port/Plunger | -8 JIC 90D |
Description
Designed to replace OEM part number 6589331, this hydraulic bucket tilt cylinder fits Bobcat skid steer loader models 520, 530, 533, 540, 542, 543, and 553. It meets or surpasses OEM standards, ensuring dependable operation and extended service life. Made entirely of steel and manufactured in the USA, it offers robust durability for rigorous applications.
3.00″
1.50″
12.25″
19.75″
32.00″
3000
Drilled Thru Base
1.25″
3.75″
Cross-Tube
1.25″
2.00″
-8 JIC 90D
-8 JIC 90D
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
