Replacement Hydraulic Grapple Cylinder for Bobcat (PN: 7212595) Grapple Models 62″-82″ Series

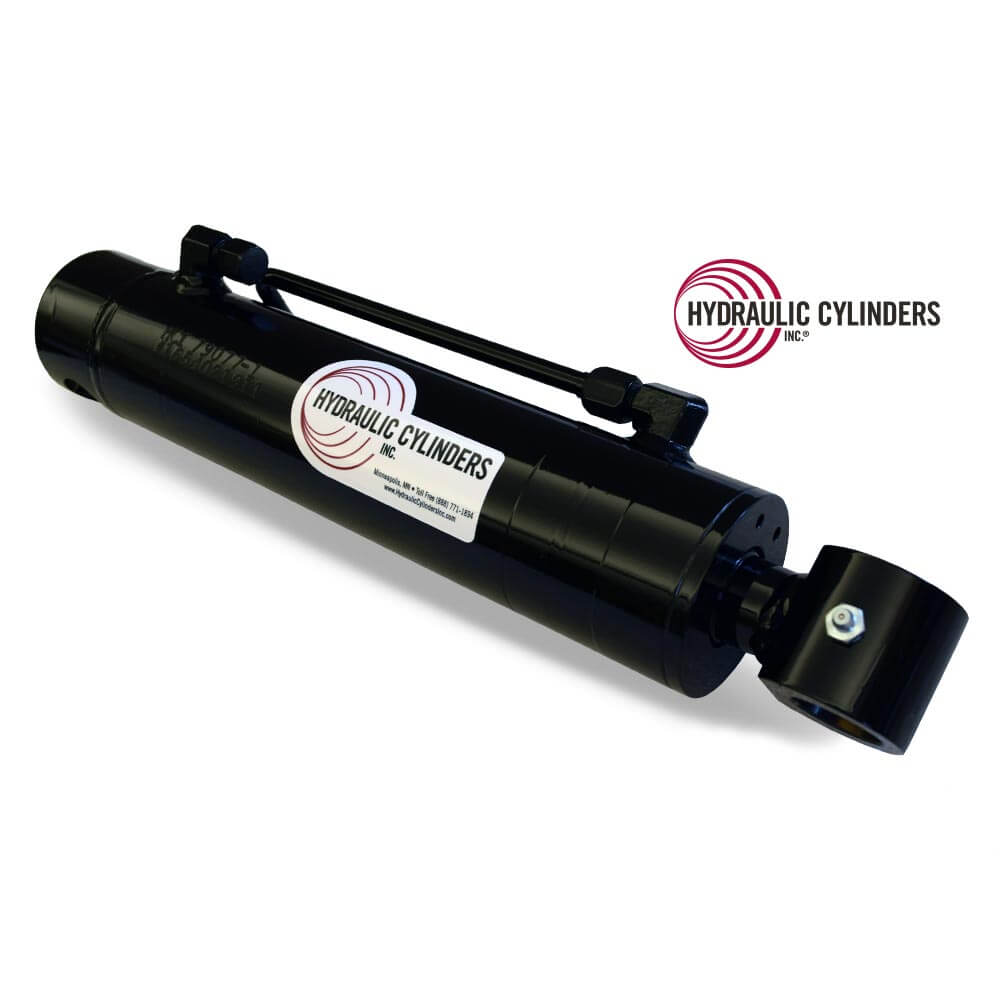

Replacement Hydraulic Grapple Bucket Cylinder for Bobcat 7164077
  • Replacement Hydraulic Grapple Bucket Cylinder for Bobcat 7164077
  • Replacement Hydraulic Grapple Bucket Cylinder for Bobcat 7164077

$975.00

Fast Ship What's This?
Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1654021911

Categories Attachments & Implements, Grapple, Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader
Fits Manufacturer Bobcat Hydraulic Cylinders
Models Bobcat Grapple Bucket 62 inch AFOS, Bobcat Grapple Bucket 66 Inch AFOS, Bobcat Grapple Bucket 66 Inch AFOT, Bobcat Grapple Bucket 68 Inch AFOR, Bobcat Grapple Bucket 72 inch AE6H, Bobcat Grapple Bucket 74 Inch, Bobcat Grapple Bucket 78 Inch AFDF, Bobcat Grapple Bucket 82 Inch AFON, Bobcat Root Grapple 72 Inch, Bobcat Root Grapple 82 Inch
Function Grapple
Type Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1654021911
Weight 30 lbs
Bore

2.50″
Rod

1.25″
Stroke

8.00″
Closed

15.25″
Open Extended Length

23.25″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Base
Base Pin Size

1.25″
Base Mount Width

3.00″
Rod End Mount Type

Cross-Tube
Rod Pin Size

1.25″
Rod Mount Width

1.92″
Extend Port/Plunger

-6 JIC 90D
Retract Port/Plunger

-6 JIC
Old OEM PNs

7164077

Description

Designed to replace OEM part number 7212595, this hydraulic grapple bucket cylinder fits Bobcat industrial grapple buckets (62″, 68″, 74″, 80″), industrial grapple forks (66″, 78″), and root grapples (66″, 72″, 82″). It meets or surpasses OEM standards, ensuring dependable operation and extended service life. Made entirely of steel and manufactured in the USA, it offers robust durability for rigorous applications.

Bore:

2.50″

Rod:

1.25″

Stroke:

8.00″

Closed:

15.25″

Open Extended Length:

23.25″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

1.25″

Base Mount Width:

3.00″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.25″

Rod Mount Width:

1.92″

Extend Port/Plunger:

-6 JIC 90D

Retract Port/Plunger:

-6 JIC

Old OEM PNs:

7164077
