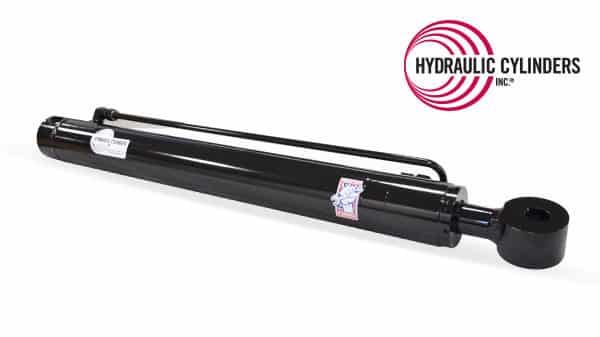

Replacement Hydraulic Boom Arm Lift Hoist Cylinder for Bobcat (PN: 7203496) Skid Steer Models S650, T650
$1,200.00
Specifications for 1204569384
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer/Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat S650, Bobcat T650 |
| Function | Boom Arm Lift |
| Type | Skid Steer/Compact Track Loader |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1204569384 |
|---|---|
| Weight | 81 lbs |
| Bore | 3.00″ |
|---|---|
| Rod | 1.75″ |
| Stroke | 25.00″ |
| Closed | 37.50″ |
| Open Extended Length | 62.50″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.50″ |
| Base Mount Width | 3.625″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 2.25″ |
| Extend Port/Plunger | -8 JIC |
| Retract Port/Plunger | -8 JIC |
| Old OEM PNs | 7203496 |
Description
This hydraulic lift cylinder replaces Bobcat OEM part number 7203496, compatible with skid steer loader models S650 and T650. Manufactured in the USA with durable all-steel construction, it meets or exceeds OEM standards, delivering reliable lifting performance, superior durability, and consistent operation even in demanding conditions.
3.00″
1.75″
25.00″
37.50″
62.50″
3000
Drilled Thru Base
1.50″
3.625″
Cross-Tube
1.25″
2.25″
-8 JIC
-8 JIC
7203496
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
