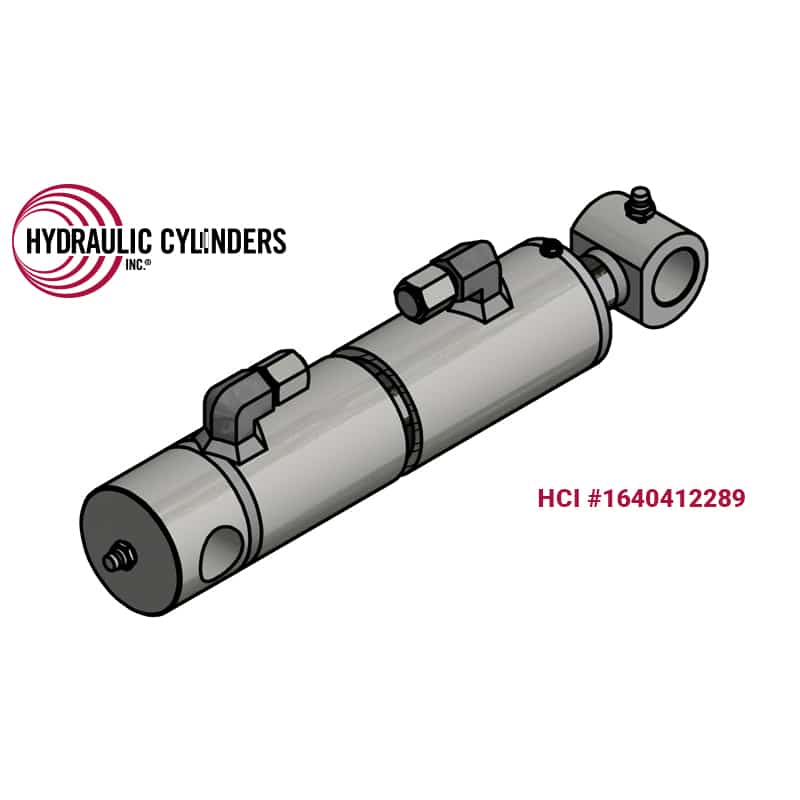

Replacement Hydraulic Thumb Cylinder for Bobcat (PN: 6810475) Excavator Models 320, 322, 323, 324, E14, E16, E17, E17z, E19, E20, E20Z
Specifications for 1640412289
| Categories | Excavator, Mini Excavator, Replacement Welded Rod Hydraulic Cylinders |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 320, Bobcat 322, Bobcat 323, Bobcat 324, Bobcat E14, Bobcat E16, Bobcat E17, Bobcat E17Z, Bobcat E19, Bobcat E20, Bobcat E20Z |
| Function | Thumb / Bucket Clamp |
| Types | Excavator, Mini Excavators |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1640412289 |
|---|---|
| Weight | 25 lbs |
| Bore | 2.00″ |
|---|---|
| Rod | 1.00″ |
| Stroke | 11.875″ |
| Closed | 18.50″ |
| Open Extended Length | 30.375″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.00″ |
| Base Mount Width | 2.375″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 1.67″ |
| Extend Port/Plunger | -6 JIC 90D |
| Retract Port/Plunger | -6 JIC 90D |
| Old OEM PNs | 6807513 |
Description
Compatible with Bobcat mini excavator models 320, 322, 323, 324, E14, E16, E17, E17z, E19, E20 and E20Z, this hydraulic thumb cylinder replaces OEM part number 6810475. It adheres to or exceeds OEM specifications, providing consistent performance and longevity. Its all-steel construction and U.S. manufacturing ensure it can handle demanding work environments.
2.00″
1.00″
11.875″
18.50″
30.375″
3000
Drilled Thru Base
1.00″
2.375″
Cross-Tube
1.00″
1.67″
-6 JIC 90D
-6 JIC 90D
6807513
