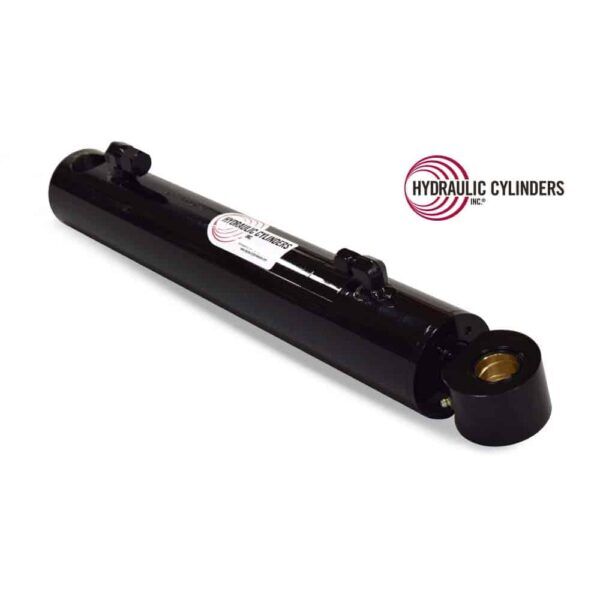

Replacement Hydraulic Bucket Tilt Dump Cylinder for Bobcat (PN: 7117174) Skid Steer Models 773, S150, S160, S175, S185, S205, T180, T190
$1,000.00
Specifications for 1012325144
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 773, Bobcat S150, Bobcat S160, Bobcat S175, Bobcat S185, Bobcat S205, Bobcat T180, Bobcat T190 |
| Function | Bucket Tilt |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1012325144 |
|---|---|
| Weight | 45 lbs |
| Bore | 2.75″ |
|---|---|
| Rod | 1.375″ |
| Stroke | 13.188″ |
| Closed | 21.00″ |
| Open Extended Length | 34.188″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.50″ |
| Base Mount Width | 3.25″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 1.875″ |
| Extend Port/Plunger | -8 JIC |
| Retract Port/Plunger | -6 JIC |
Description
Replacement hydraulic tilt cylinder for Bobcat 773–T190 replaces OEM part number 7117174 and restores bucket control on Bobcat skid steers. This direct-fit, double-acting rod cylinder delivers smooth tilt and dump functions with the strength to handle tough jobs. Built for long service life, it performs reliably in demanding conditions.
It fits Bobcat 773, S150, S160, S175, S185, S205, T180, and T190 skid steer models. Use it for grading, dumping, or backdragging with precision and control. The cylinder matches OEM specs for pressure, stroke, and bore to ensure fast installation and seamless performance.
FASTSHIP available—order by 12:00 CST for same-day shipping. Performance-built and warranty-backed to keep your Bobcat working hard. Demolish Downtime with a tilt cylinder that’s ready when you are.
2.75″
1.375″
13.188″
21.00″
34.188″
3000
Drilled Thru Base
1.50″
3.25″
Cross-Tube
1.25″
1.875″
-8 JIC
-6 JIC
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
