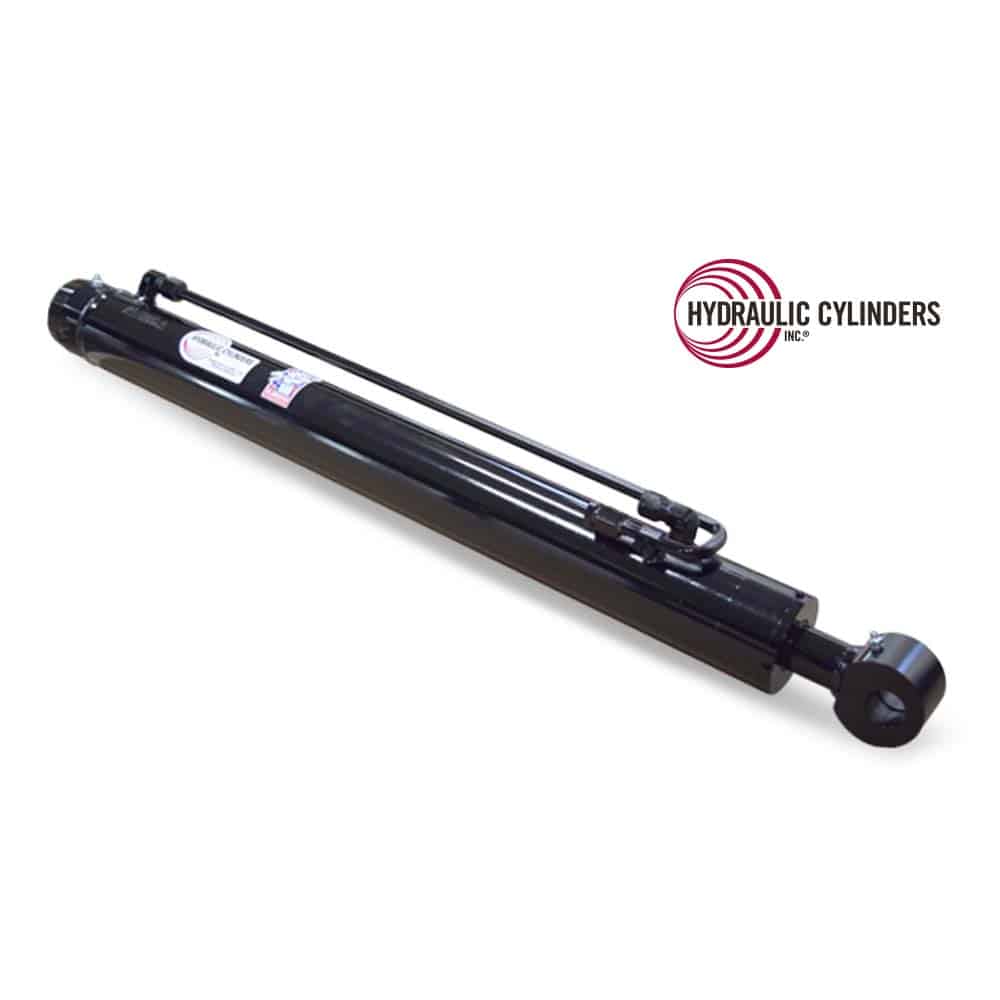

Replacement Hydraulic Boom Arm Lift Hoist Cylinder for Bobcat (PN: 7106456) Skid Steer Models S300, S330, T300, T320

  • Bobcat Replacement Lift Cylinder for 7106456
  • Bobcat Replacement Lift Cylinder for 7106456
  • Bobcat Replacement Lift Cylinder for 7106456
  • Bobcat Replacement Lift Cylinder for 7106456

$1,175.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1117099401

CategoryReplacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader
Fits Manufacturer Bobcat Hydraulic Cylinders
Models Bobcat S300, Bobcat S330, Bobcat T300, Bobcat T320
Function Boom Arm Lift
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1117099401
Weight 75 lbs

Bore

3.00″

Rod

1.625″

Stroke

25.438″

Closed

38.25″

Open Extended Length

63.688″

Operating Pressure (PSI)

3000

Base End Mount Type

Drilled Thru Base

Base Pin Size

1.25″

Base Mount Width

3.50″

Rod End Mount Type

Cross-Tube

Rod Pin Size

1.25″

Rod Mount Width

2.11″

Extend Port/Plunger

-8 JIC

Retract Port/Plunger

-8 JIC

Description

Replacement boom cylinder for Bobcat S300–T320 provides strong vertical lift and steady boom performance. It replaces OEM part number 7106456 and matches original fit and factory specs. This cylinder fits Bobcat S300 and S330 skid steers, as well as T300 and T320 track loaders.

Its welded rod, double-acting design moves with consistent hydraulic force in both directions. This boom cylinder handles heavy lift cycles with reduced wear and stable control across multiple loader platforms.

Made from all-steel components and built in the USA, this cylinder meets or exceeds OEM durability standards. Performance-Built and Warranty-Backed. FASTSHIP eligible — order by 12:00 CST for same-day shipping. Demolish Downtime.

Bore:

3.00″

Rod:

1.625″

Stroke:

25.438″

Closed:

38.25″

Open Extended Length:

63.688″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

1.25″

Base Mount Width:

3.50″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.25″

Rod Mount Width:

2.11″

Extend Port/Plunger:

-8 JIC

Retract Port/Plunger:

-8 JIC

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

12 Month Warranty

Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.

Exclusions & Conditions:

  • Disassembly voids warranty coverage.
  • Misuse, misapplication, or unauthorized modification is not covered.
  • HCI does not provide engineering guidance or warrant product fitness for any specific application.
  • It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.

Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
