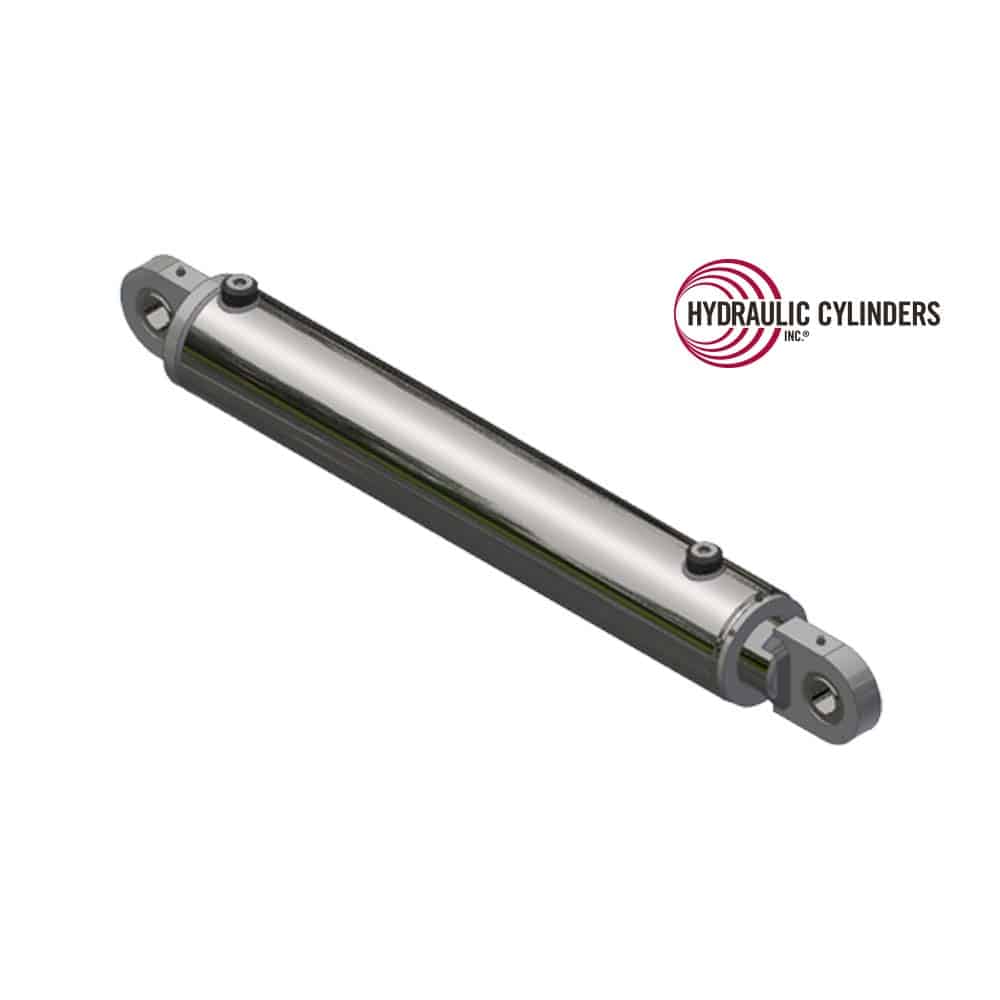

Replacement Hydraulic Mixer Tilt Cylinder for CON-E-CO (PN: 146643) Concrete Batch, Cement Mixer
Specifications for 1304155641
| Category | Replacement Welded Rod Hydraulic Cylinders » Other » Concrete Batch / Cement Mixer Plant |
|---|---|
| Fits Manufacturers | CON-E-CO, Concrete Equipment Co An Oshkosh Corp Co |
| Function | Mixer Tilt |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1304155641 |
|---|---|
| Weight | 360 lbs |
| Bore | 6.00″ |
|---|---|
| Rod | 4.00″ |
| Stroke | 33.50″ |
| Closed | 51.00″ |
| Open Extended Length | 84.50″ |
| Base End Mount Type | Spherical Bearing |
| Base Pin Size | 2.00″ |
| Base Mount Width | 1.75″ |
| Rod End Mount Type | Spherical Bearing |
| Rod Pin Size | 2.00″ |
| Rod Mount Width | 1.75″ |
| Extend Port/Plunger | -16 SAE ORB |
| Retract Port/Plunger | -16 SAE ORB |
Description
This replacement tilt cylinder (PN: 146643) is designed for use on concrete batch and cement mixer equipment. It controls the tilt function of the mixer drum, allowing operators to load, mix, and discharge material efficiently. Built to meet or exceed OEM specifications, it delivers consistent hydraulic movement and dependable performance in daily use
6.00″
4.00″
33.50″
51.00″
84.50″
Spherical Bearing
2.00″
1.75″
Spherical Bearing
2.00″
1.75″
-16 SAE ORB
-16 SAE ORB
