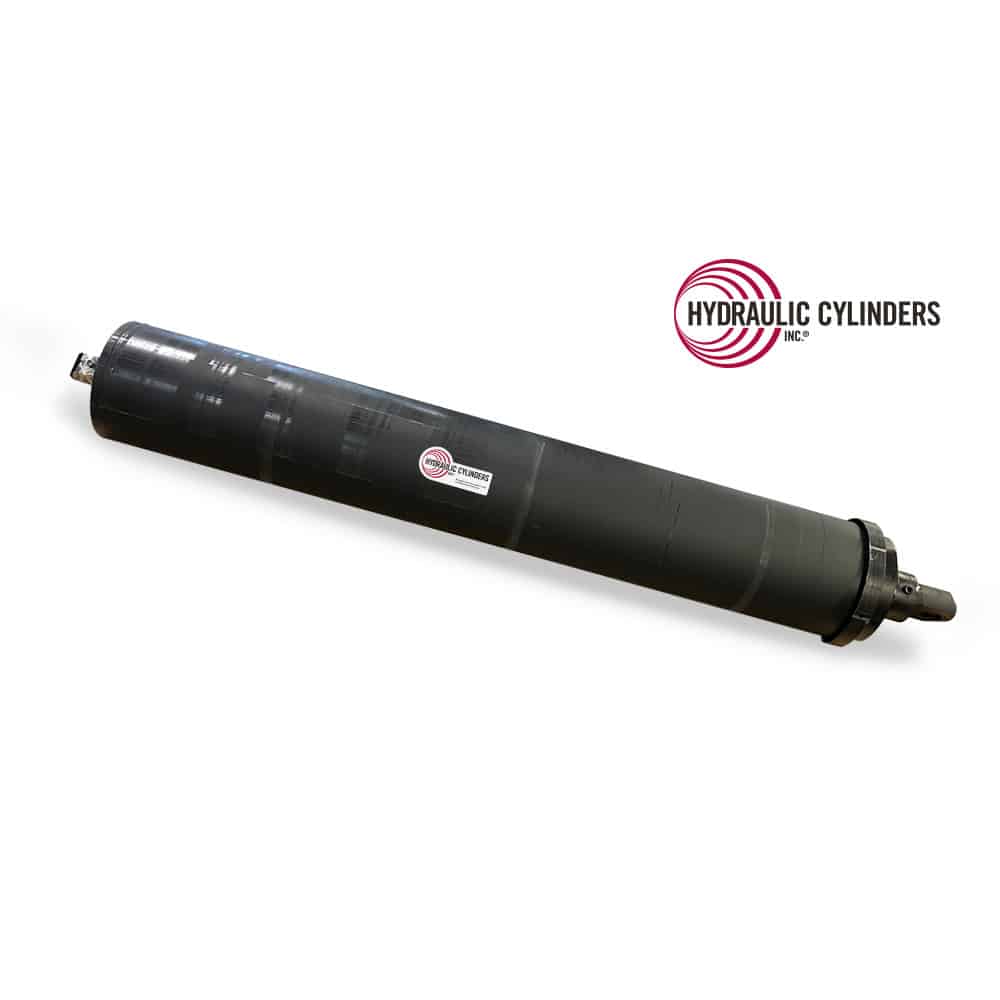

SD93CC-20-177 (Commercial / Parker) Replacement DAT Mast Cylinder

Parker SD93CC-20-177 / 3773133019 Double Acting Telescopic Cylinder

$18,850.00

Fast Ship What's This?

Specifications for 3773133019

CategoryReplacement Telescopic Hydraulic Cylinders » Drill Rig
Function Mast Raising
Features Double-Acting Telescopic Hydraulic Cylinders (DAT)
SKU 3773133019
Weight 1095.0 lbs
Tele Largest Stage OD

9.00″
Telescopic Stages

3
Telescopic Stroke

177.00″
Closed

79.00″
Open Extended Length

256.00″
Base End Mount Type

Drilled Thru Lug
Base Mount Width

2.00″
Base Pin Size

2.00″
Rod End Mount Type

Drilled Thru Lug
Rod Mount Width

2.00″
Rod Pin Size

2.00″
Extend Port/Plunger

.50 NPT Out Base
18 Month Warranty
Made in USA

Description

The SD93CC-20-177 (Commercial / Parker) Replacement DAT Mast Cylinder is a double-acting telescopic hydraulic cylinder built for mast-raising and hoist systems that need smooth, balanced lift in both directions. It meets OEM Commercial / Parker specs for strength, control, and leak-free operation.

This 3-stage skip-a-sleeve design provides a 177″ stroke and 256″ extended length while keeping a 79″ closed height. Its 9″ largest OD stage and chrome-plated sleeves (9.38″, 7.90″, 4.75″) add rigidity and corrosion resistance. The cylinder mounts with drilled-through lugs and 2.00″ base and rod pins, ensuring easy fitment and secure load handling. Dual .50 NPT ports simplify hose routing and allow fast, controlled extension and retraction.

The SD93CC-20-177 Commercial / Parker DAT replacement cylinder is FASTSHIP eligible if ordered by 12:00 CST, cutting downtime and keeping fleets on schedule. Performance-Built and Warranty-Backed. FASTSHIP available for same-day shipping. Demolish Downtime.

Tele Largest Stage OD:

9.00″

Telescopic Stages:

3

Telescopic Stroke:

177.00″

Closed:

79.00″

Open Extended Length:

256.00″

Base End Mount Type:

Drilled Thru Lug

Base Mount Width:

2.00″

Base Pin Size:

2.00″

Rod End Mount Type:

Drilled Thru Lug

Rod Mount Width:

2.00″

Rod Pin Size:

2.00″

Extend Port/Plunger:

.50 NPT Out Base

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

18 Month Warranty

Warranty Coverage:
Commercial/Parker telescopic cylinders—both single-acting and double-acting models—are covered by an 18-month limited warranty against defects in materials, workmanship, and leak-free performance.

Exclusions & Conditions:

  • Warranty does not cover misuse, misapplication, contamination, or unauthorized alterations.
  • All claims are subject to inspection and approval by Parker.

Claims Process:
Contact Hydraulic Cylinders, Inc. to begin the warranty claim process. Claims require return and evaluation of the product.
