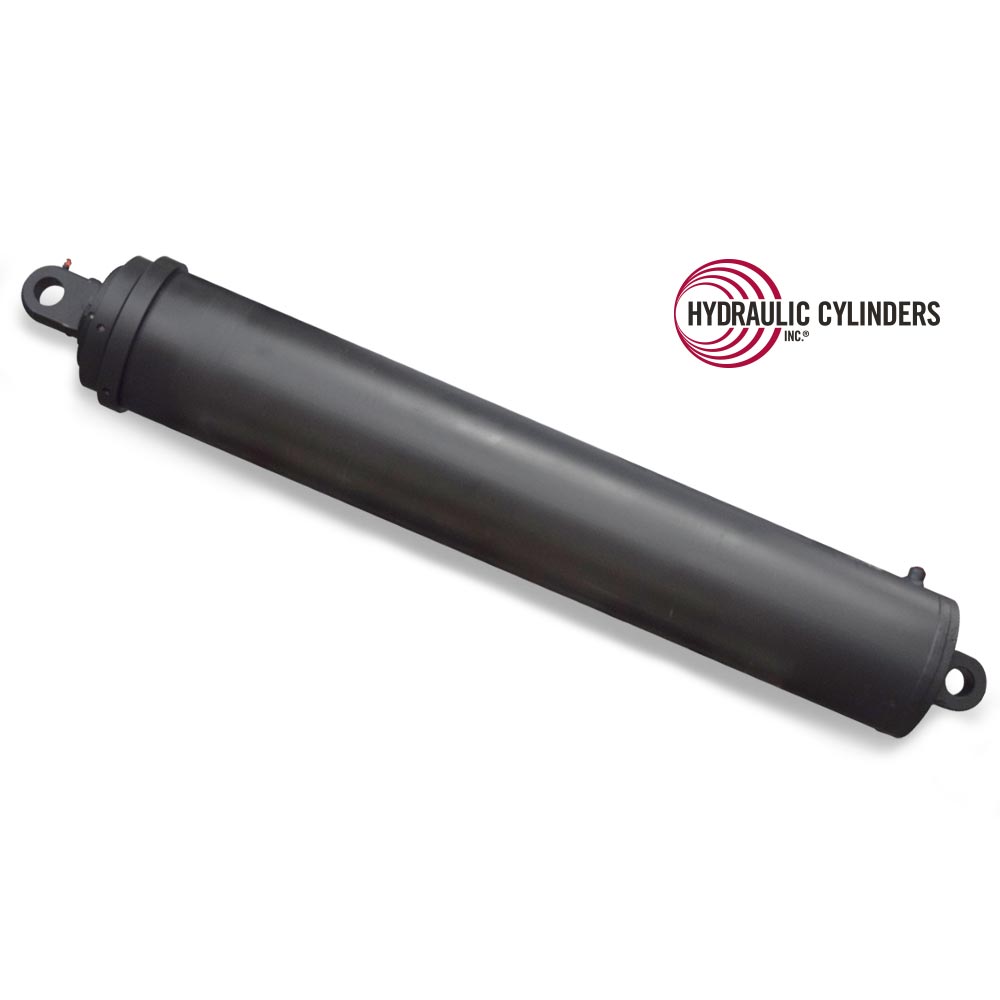

SD83CC-24-131 (Commercial / Parker) Replacement DAT Drill Rig Mast Raise Cylinder

  • SD83CC-24-131 (Commercial / Parker) Replacement DAT Drill Rig Mast Raise Cylinder

SKU3773033043
CategoriesReplacement Telescopic Hydraulic Cylinders, Double-Acting Telescopic Cylinders
ManufacturersCooper Mfg, National Oilwell Varco, Permian Engineering, Service King Manufacturing, Skytop Brewster, Stewart & Stevenson, Taylor Industries, Taylor Rigs
FunctionMast Raising
TypeDrill Rig

Description

  • Skip A Sleeve Design
  • Only Plunger Double Acting
  • Chrome Sleeves

SD83CC-24-131 (Commercial / Parker) Replacement DAT Drill Rig Mast Raise Cylinder Product Data

Weight500 lbs
Base End Mount Type

Drilled Thru Lug

Base Mount Width

2.00″

Base Pin Size

1.75″

Closed

60″

Extend Port/Plunger

.50" NPT

Open Extended Length

191.5″

Rod End Mount Type

Drilled Thru Lug

Rod Mount Width

2.00″

Rod Pin Size

1.75″

Tele Largest Stage OD

8″

Telescopic Number of Stages

3

Telescopic Stroke

131″

Description

The following cylinders are compatible replacements for replacement part number 3773033043.

Reference Part NumberHCI Part NumberReference NameEquipment ManufacturerEquipment ModelEquipment TypeIndustryReplacement NameCylinder TypeCylinder Function
082060-02-513773033043Skytop BrewsterSkytop BrewsterOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
1000216043773033043Stewart & StevensonStewart & StevensonOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
203-21593773033043National Oilwell VarcoNational Oilwell VarcoOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
37730330433773033043Commercial / ParkerSkytop BrewsterOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
40-0002413773033043Taylor Industries, Taylor RigsTaylor Industries, Taylor RigsOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
50089-813-1323773033043HycoSkytop BrewsterOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
50162-813-1313773033043HycoService King ManufacturingOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
50162-813-131503773033043HycoService King ManufacturingOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
CPD2653773033043National Oilwell VarcoNational Oilwell VarcoOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
DK501623773033043Service King MfgService King ManufacturingOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-24-1313773033043Commercial / ParkerSkytop BrewsterOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-24-1313773033043Commercial / ParkerCooper MfgOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-24-1313773033043Commercial / ParkerNational Oilwell VarcoOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-24-1313773033043Commercial / ParkerPermian EngineeringOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-24-131.503773033043Commercial / ParkerM&Z Oilfield SpecialistsOil Field Drill RigOil & GasCommercial / ParkerDatMast Raising
