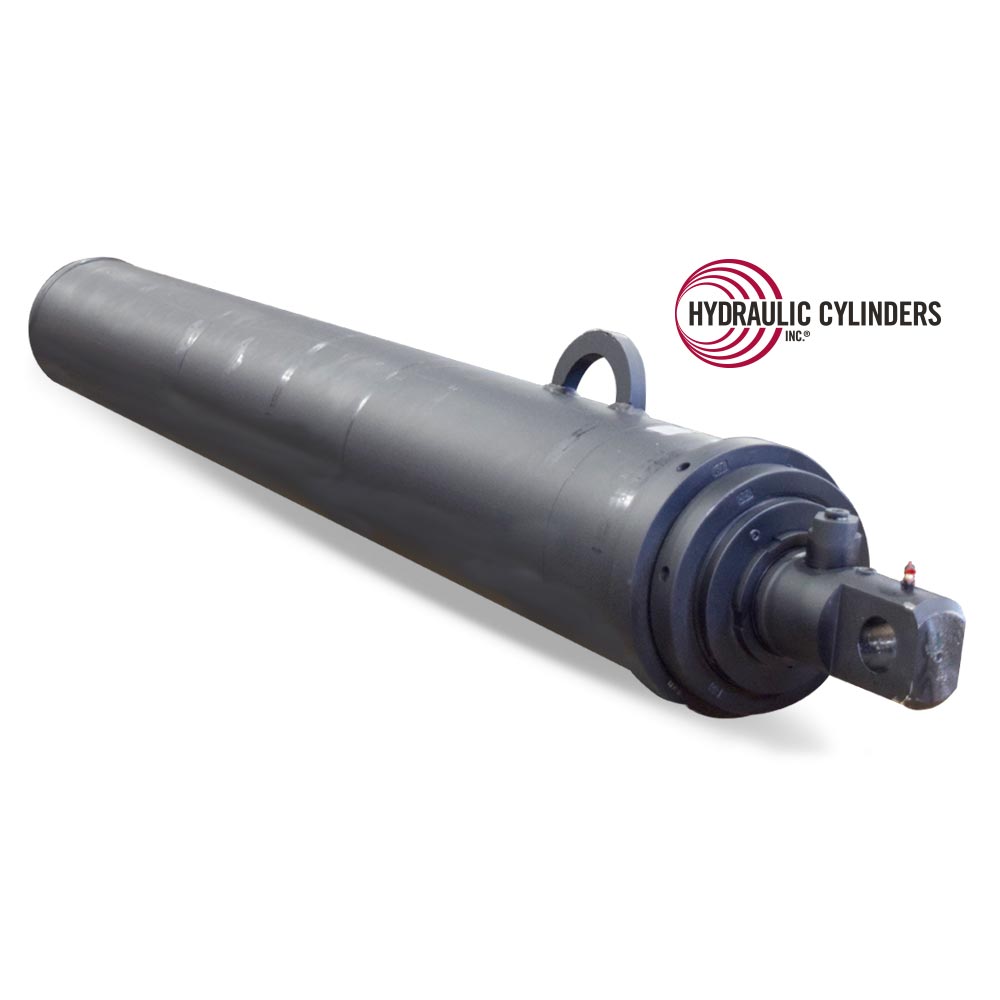

SD83CC-22-176 (Commercial / Parker) Replacement DAT Drill Rig Cylinder

  • SD83CC-22-176 (Commercial / Parker) Replacement DAT Drill Rig Cylinder

$8,147.00

SKU3773033038
CategoriesReplacement Telescopic Hydraulic Cylinders, Double-Acting Telescopic Cylinders
ManufacturersBronco, Crane Carrier, National Oilwell Varco, Stewart & Stevenson
FunctionMast Raising
TypeDrill Rig

Description

  • Skip A Sleeve Design
  • Only Plunger Double Acting
  • Chrome Sleeves

SD83CC-22-176 (Commercial / Parker) Replacement DAT Drill Rig Cylinder Product Data

Weight860 lbs
Base End Mount Type

Drilled Thru Lug

Base Mount Width

2.50″

Base Pin Size

1.75″

Closed

82.00″

Extend Port/Plunger

.375 NPT

Open Extended Length

258.81″

Rod End Mount Type

Drilled Thru Lug

Rod Mount Width

2.00″

Rod Pin Size

1.75″

Tele Largest Stage OD

8″

Telescopic Number of Stages

3

Telescopic Stroke

186″

Description

The following cylinders are compatible replacements for replacement part number 3773033038.

Reference Part NumberHCI Part NumberReference NameEquipment ManufacturerEquipment ModelEquipment TypeIndustryReplacement NameCylinder TypeCylinder Function
37730330383773033038Commercial / ParkerNational Oilwell VarcoOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
37730330383773033038Commercial / ParkerCrane CarrierOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-22-1763773033038Commercial / ParkerCrane CarrierOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-22-1763773033038Commercial / ParkerNational Oilwell VarcoOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-22-1763773033038Commercial / ParkerStewart & StevensonOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
SD83CC-22-1763773033038Commercial / ParkerBroncoOil Field Drill RigOil & GasCommercial / ParkerDATMast Raising
