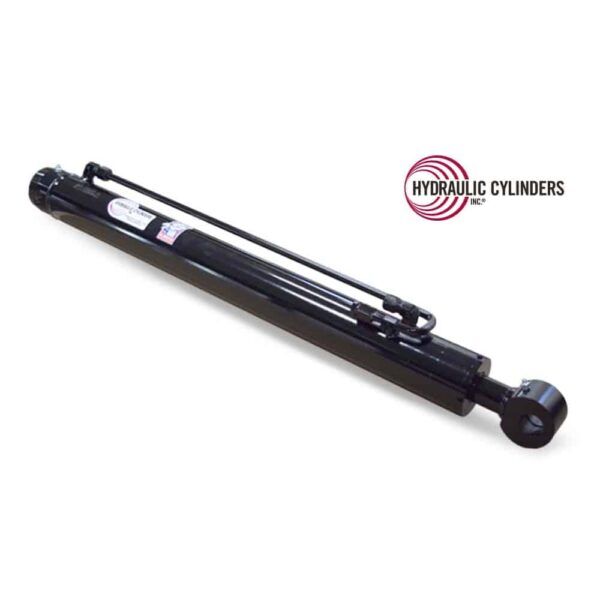

Replacement Hydraulic Boom Arm Lift Hoist Cylinder for Bobcat (PN: 7106456) Skid Steer Models S300, S330, T300, T320
$1,175.00
Specifications for 1117099401
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat S300, Bobcat S330, Bobcat T300, Bobcat T320 |
| Function | Boom Arm Lift |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1117099401 |
|---|---|
| Weight | 75 lbs |
| Bore | 3.00″ |
|---|---|
| Rod | 1.625″ |
| Stroke | 25.438″ |
| Closed | 38.25″ |
| Open Extended Length | 63.688″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.25″ |
| Base Mount Width | 3.50″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 2.11″ |
| Extend Port/Plunger | -8 JIC |
| Retract Port/Plunger | -8 JIC |
Description
Replacement boom cylinder for Bobcat S300–T320 provides strong vertical lift and steady boom performance. It replaces OEM part number 7106456 and matches original fit and factory specs. This cylinder fits Bobcat S300 and S330 skid steers, as well as T300 and T320 track loaders.
Its welded rod, double-acting design moves with consistent hydraulic force in both directions. This boom cylinder handles heavy lift cycles with reduced wear and stable control across multiple loader platforms.
Made from all-steel components and built in the USA, this cylinder meets or exceeds OEM durability standards. Performance-Built and Warranty-Backed. FASTSHIP eligible — order by 12:00 CST for same-day shipping. Demolish Downtime.
3.00″
1.625″
25.438″
38.25″
63.688″
3000
Drilled Thru Base
1.25″
3.50″
Cross-Tube
1.25″
2.11″
-8 JIC
-8 JIC
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
