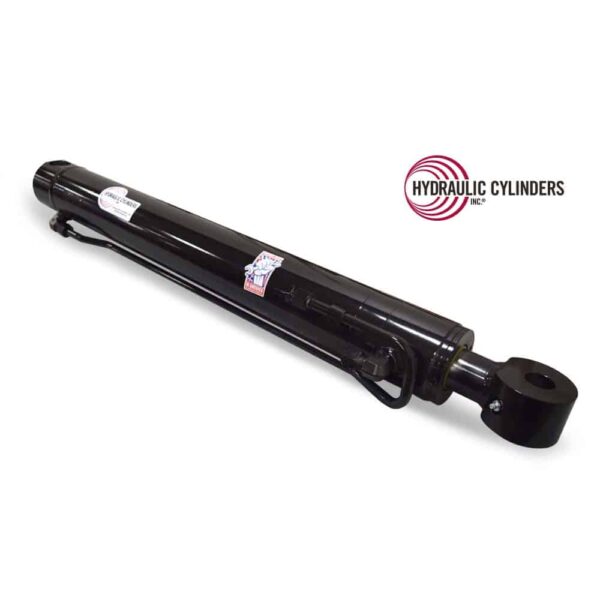

Replacement Hydraulic Boom Arm Lift Cylinder for Bobcat (PN: 7203494) Skid Steer Models S750, S770, T750, T770, A770
Specifications for 1235619023
| Category | Replacement Welded Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat A770, Bobcat S750, Bobcat S770, Bobcat T750, Bobcat T770 |
| Function | Boom Arm Lift |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1235619023 |
|---|
| Bore | 3.00″ |
|---|---|
| Rod | 1.75″ |
| Stroke | 26.00″ |
| Closed | 36.50″ |
| Open Extended Length | 62.50″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.50″ |
| Base Mount Width | 3.625″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 2.25″ |
| Extend Port/Plunger | -8 JIC 90D |
| Retract Port/Plunger | -8 JIC 90D |
Description
Upgrade Note: OEM 7203494 (1235619023) uses a 3.00” Bore. OEM 7245374 (1237227259) is 3.25” Bore. For greater lifting force, HCI recommends replacing 7203494 (1235619023) with 7245374 (1237227259) as a set.
Replacement boom lift cylinder for Bobcat S750–A770 models (A770, S750, S770, T750, T770), replacing OEM PN 7203494 (SKU 1235619023). This boom arm lift cylinder delivers smooth, consistent lift performance for demanding skid steer and compact track loader work.
Built from all-steel components and made in the USA, it’s engineered to meet or exceed OEM standards for strength, fit, and long-term reliability. Performance-Built and Warranty-Backed, this replacement hydraulic cylinder helps keep your machine working when it counts—Demolish Downtime.
3.00″
1.75″
26.00″
36.50″
62.50″
3000
Drilled Thru Base
1.50″
3.625″
Cross-Tube
1.25″
2.25″
-8 JIC 90D
-8 JIC 90D
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
