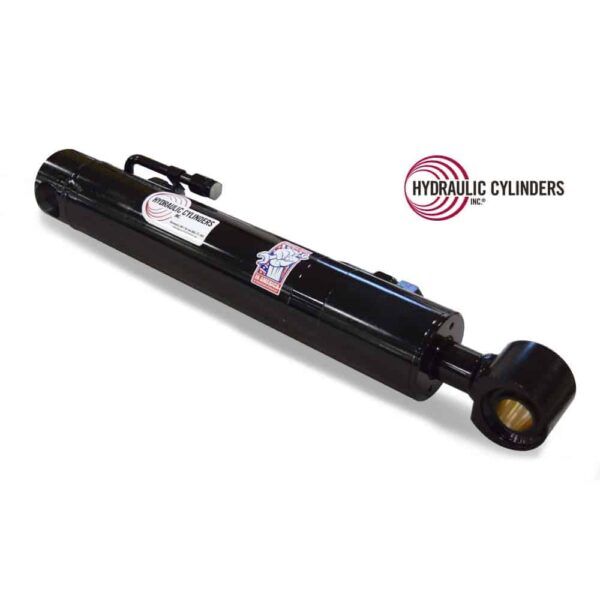

Replacement Hydraulic LH Bucket Tilt Cylinder for Bobcat (PN: 7235738) Models A770, S630, S650, S740, S750, S770, T630, T650, T740, T750, T770
$935.00
Specifications for 1204054153
| Category | Replacement Welded Rod Hydraulic Cylinders » Skid Steer / Compact Track Loader |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat A770, Bobcat S630, Bobcat S650, Bobcat S740, Bobcat S750, Bobcat S770, Bobcat T630, Bobcat T650, Bobcat T740, Bobcat T750, Bobcat T770 |
| Function | Bucket Tilt |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1204054153 |
|---|---|
| Weight | 59 lbs |
| Bore | 3.00″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 13.75″ |
| Closed | 23.50″ |
| Open Extended Length | 37.25″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Lug |
| Base Pin Size | 1.75″ |
| Base Mount Width | 3.50″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.25″ |
| Rod Mount Width | 2.25″ |
| Extend Port/Plunger | -8 JIC 90D |
| Retract Port/Plunger | -8 JIC 90D |
| Old OEM PNs | 7222704, 7235738 |
Description
Replacement LH tilt cylinder Bobcat S630–T770 restores critical left-side bucket tilt function for select skid steers, track loaders, and all-wheel steer models. This direct-fit cylinder replaces OEM part number 7235738 and is engineered to deliver OEM-grade control and durability.
It fits Bobcat S630, S650, S740, S750, and S770 skid steers; T630, T650, T740, T750, and T770 compact track loaders; and the A770 all-wheel steer loader. The welded, double-acting design ensures smooth dumping and rollback on the left bucket arm, even under heavy daily workloads. It’s ideal for machines requiring precision handling and consistent bucket performance.
Made in the USA and built from all-steel components, this LH tilt cylinder is Performance-Built and Warranty-Backed for long-term reliability. It meets or exceeds OEM durability standards. FASTSHIP eligible—order by 12:00 CST for same-day shipping. Demolish Downtime.
3.00″
1.50″
13.75″
23.50″
37.25″
3000
Drilled Thru Lug
1.75″
3.50″
Cross-Tube
1.25″
2.25″
-8 JIC 90D
-8 JIC 90D
7222704, 7235738
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.
Exclusions & Conditions:
- Disassembly voids warranty coverage.
- Misuse, misapplication, or unauthorized modification is not covered.
- HCI does not provide engineering guidance or warrant product fitness for any specific application.
- It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.
Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
