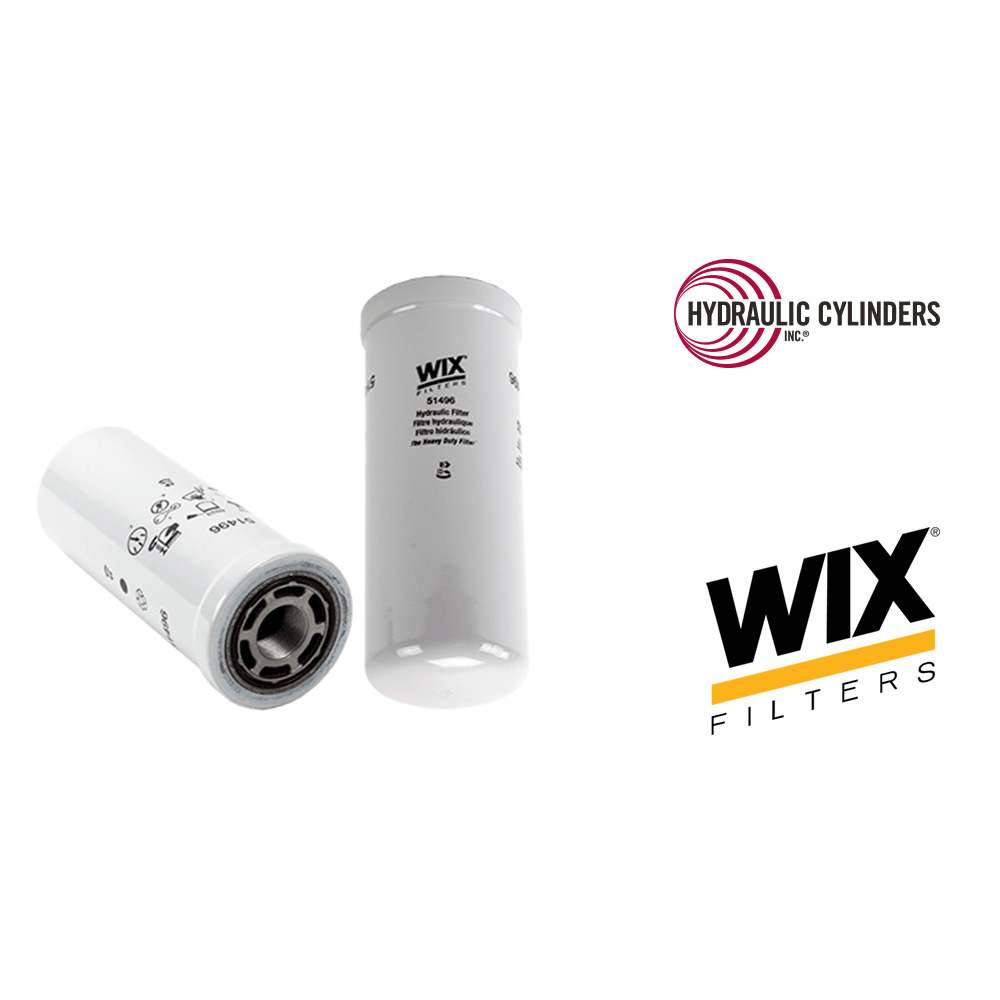

WIX 51496 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 3 Micron
$81.59 In Stock
Buy Now, Pay Later Available in Checkout
Specifications for 51496
| SKU | 51496 |
|---|---|
| UPC | 765809514966 |
| Weight | 3.0 lbs |
| Type | Full Flow |
|---|---|
| Height | 9.49" / 241mm |
| Outer Diameter Top | 3.81" / 97mm |
| Beta Ratio | 2/20=2/3 |
| Burst Pressure-PSI | 1000 |
| Max Flow Rate | 24-28 GPM |
| Nominal Micron Rating | 3 |
| Gasket Type | Attached |
| Gasket O.D. | 2.762" / 70mm |
| Gasket I.D. | 2.484" / 63mm |
| Gasket Thickness | 0.278" / 7mm |
| Thread Size | 1 3/8-12 |
Description
The WIX 51496 spin-on hydraulic filter is a genuine WIX hydraulic filter built for demanding hydraulic systems. It uses microglass media rated at 3 microns with a 1 3/8-12 thread (UPC 765809514966).
Hydraulic Cylinders, Inc. (HCI) stocks the WIX 51496 alongside the heavy equipment we already supply parts for. It fits the hydraulic systems on Caterpillar, Case, New Holland, Volvo, JCB, Doosan machines — the full fitment list is below.
Principle Applications: Various Hydraulic Applications (3 micron).
Not sure the 51496 is the right filter for your equipment? Call HCI and we’ll confirm fitment before you order. Demolish Downtime.
Type:
Full Flow
Height:
9.49" / 241mm
Outer Diameter Top:
3.81" / 97mm
Beta Ratio:
2/20=2/3
Burst Pressure-PSI:
1000
Max Flow Rate:
24-28 GPM
Nominal Micron Rating:
3
Gasket Type:
Attached
Gasket O.D.:
2.762" / 70mm
Gasket I.D.:
2.484" / 63mm
Gasket Thickness:
0.278" / 7mm
Thread Size:
1 3/8-12
| Make / Model | Equipment | Year | Engine |
|---|---|---|---|
| Ag-Chem & Challenger 1074 RO-GATOR | Misc. Equipment | – | w / Caterpillar 3126B Engine |
| Ag-Chem & Challenger 1074C RO-GATOR | Misc. Equipment | – | w / Caterpillar 3126B Engine |
| Ag-Chem & Challenger 1286C RO-GATOR | Misc. Equipment | – | w / Caterpillar C9 Engine |
| Ag-Chem & Challenger 1386 RO-GATOR | Misc. Equipment | – | w / Caterpillar C9 (Tier III) Engine |
| Ag-Chem & Challenger 1396 RO-GATOR | Misc. Equipment | – | w / Caterpillar C9 (Tier III) Engine |
| Ag-Chem & Challenger 874 RO-GATOR | Misc. Equipment | – | w / Caterpillar 3126B Engine |
| Ag-Chem & Challenger SS1074 RO-GATOR | Misc. Equipment | – | w / Caterpillar 3126B Engine |
| Ag-Chem & Challenger SS874 RO-GATOR | Misc. Equipment | – | w / Caterpillar 3126B Engine |
| Ag-Chem & Challenger SSC1074 RO-GATOR | Misc. Equipment | – | w / Caterpillar 3126B Engine |
| Asv 2800 | Skid Steer Loaders | – | w / Isuzu 4JB1 Engine |
| Asv 2800 | Skid Steer Loaders | – | w / Isuzu 4JB1T Engine |
| Asv 2810 | Skid Steer Loaders | – | w / Isuzu 4JB1 Engine |
| Asv 2810 | Skid Steer Loaders | – | w / Isuzu 4JB1T Engine |
| Asv 4810 | Skid Steer Loaders | – | w / Caterpillar 3054T Engine |
| Asv PT100 | Skid Steer Loaders | – | w / Perkins 1104C-44T Engine |
| Asv PT70 | Skid Steer Loaders | – | w / Perkins 804C-33T Engine |
| Asv PT70 | Skid Steer Loaders | – | w / Perkins 804C-33T Tier III Engine |
| Asv PT80 | Skid Steer Loaders | – | w / Perkins 804C-33T Engine |
| Asv PT80 | Skid Steer Loaders | – | w / Perkins 804C-33T Tier III Engine |
| Asv RC100 POSI-TRACK | Skid Steer Loaders | – | w / Caterpillar 3054CT Engine |
| Asv RC100 POSI-TRACK | Skid Steer Loaders | – | w / Perkins 1104C-44T Engine |
| Asv RC80 POSI-TRACK | Skid Steer Loaders | – | w / Perkins 1104C-44T Engine |
| Asv RC85 POSI-TRACK | Skid Steer Loaders | – | w / Caterpillar 3054C Engine |
| Asv RC85 POSI-TRACK | Skid Steer Loaders | – | w / Perkins 1104C-44 Engine |
| Asv RCV POSI-TRACK | Skid Steer Loaders | – | w / Perkins 1104C-44 Engine |
| Asv RT75 | Skid Steer Loaders | – | L4 2.8L 2802cc 171 CID |
| Asv SR70 POSI-TRACK | Skid Steer Loaders | – | w / Perkins 804C-33T Engine |
| Asv SR80 POSI-TRACK | Skid Steer Loaders | – | w / Perkins 804C-33T Engine |
| Bomag MPH364R-2 | Stabilizers | – | w / Cummins QSM11 Engine |
| Bomag MPH364S-2 | Stabilizers | – | w / Cummins QSM11 Engine |
| Bomag MPH364SDM-2 | Stabilizers | – | w / Cummins QSM11 Engine |
| Case / Case-Ih 860 | Cable Layer/Trencher | – | L 4 3.9L 3916cc 239 CID(Turbo 4T-390 Diesel Mfr Case ) |
| Case / Case-Ih 1550 | Crawler Dozers | – | L 6 8.3L 8259cc 504 CID(Turbo 6T-830 Diesel Mfr Case ) |
| Case / Case-Ih 1650K | Crawler Dozers | – | L 6 5.9L 5883cc 359 CID(Turbo 6BTAA5.9C Diesel Mfr Cummins ) |
| Case / Case-Ih 1650K LGP | Crawler Dozers | – | L 6 5.9L 5883cc 359 CID(Turbo 6BTAA5.9C Diesel Mfr Cummins ) |
| Case / Case-Ih 1650K XLT | Crawler Dozers | – | L 6 5.9L 5883cc 359 CID(Turbo 6BTAA5.9C Diesel Mfr Cummins ) |
| Case / Case-Ih 1650L | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih 1650L LGP | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih 1650L WT | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih 1650L XLT | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih 650L | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 650L LGP | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 650L LT | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 650L WT | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 750L | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 750L LGP | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 750L LT | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 750L WT | Crawler Dozers | – | L 4 4.5L 4490cc 274 CID(Turbo Family IV Diesel Mfr Case ) |
| Case / Case-Ih 850L | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih 850L LGP | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih 850L WT | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih 850L XLT | Crawler Dozers | – | L 6 6.7L 6700cc 409 CID(Turbo/Intercooled 667TA Diesel Mfr Case ) |
| Case / Case-Ih FLX3010 | Sprayers/Spreaders | – | w / Cummins 8.3L Engine |
| Case / Case-Ih PATRIOT 150 | Sprayers/Spreaders | – | w / Deutz BF6M1013 Engine |
| Case / Case-Ih PATRIOT 2240 | Sprayers/Spreaders | – | w / Case IH 6.7L Engine |
| Case / Case-Ih PATRIOT 2250 | Sprayers/Spreaders | – | L6 6.7L 409 CID |
| Case / Case-Ih PATRIOT 3340 | Sprayers/Spreaders | – | L6 6.7L 409 CID |
| Case / Case-Ih PATRIOT 4430 | Sprayers/Spreaders | – | w / Case IH 8.7L Engine |
| Case / Case-Ih PATRIOT 4440 | Sprayers/Spreaders | – | L6 8.7L 531 CID |
| Case / Case-Ih PATROIT WT | Sprayers/Spreaders | – | w / John Deere 6068T Engine |
| Case / Case-Ih SPX3150 | Sprayers/Spreaders | – | w / Cummins 5.9L Engine |
| Case / Case-Ih SPX3185 | Sprayers/Spreaders | – | w / Cummins 5.9L Engine |
| Case / Case-Ih SPX3200 | Sprayers/Spreaders | – | w / Cummins 5.9L Engine |
| Case / Case-Ih SPX3200B | Sprayers/Spreaders | – | w / Cummins 5.9L Engine |
| Case / Case-Ih SPX3310 | Sprayers/Spreaders | – | w / Cummins 5.9L Engine |
| Case / Case-Ih SPX4260 | Sprayers/Spreaders | – | w / Cummins Engine |
| Case / Case-Ih SPX4410 | Sprayers/Spreaders | – | w / Cummins 8.3L Engine |
| Case / Case-Ih MAXXUM 110 | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 110 MULTICONTROLLER | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 115 | Wheel Tractors | – | w / Case/IH 6.7L (411 CID) Engine |
| Case / Case-Ih MAXXUM 115 MULTICONTROLLER | Wheel Tractors | – | w / Case/IH 6.7L (411 CID) Engine |
| Case / Case-Ih MAXXUM 120 | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 120 MULTICONTROLLER | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 125 | Wheel Tractors | – | w / Case/IH 6.7L (411 CID) Engine |
| Case / Case-Ih MAXXUM 125 MULTICONTROLLER | Wheel Tractors | – | w / Case/IH 6.7L (411 CID) Engine |
| Case / Case-Ih MAXXUM 130 | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 130 MULITCONTROLLER | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 135 | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 140 | Wheel Tractors | – | w / Case/IH 6.7L (411 CID) Engine |
| Case / Case-Ih MAXXUM 140 MULTICONTROLLER | Wheel Tractors | – | w / Case/IH 6.7L (411 CID) Engine |
| Case / Case-Ih MAXXUM 145 | Wheel Tractors | – | L4 4.5L 4500CC 275CID |
| Case / Case-Ih MAXXUM 150 | Wheel Tractors | – | L6 7L 6700CC 409CID |
| Case / Case-Ih MAXXUM 150 MULTICONTROLLER | Wheel Tractors | – | L6 7L 6700CC 409CID |
| Case / Case-Ih MXU100 | Wheel Tractors | – | w / Case/IHC Engine |
| Case / Case-Ih PUMA 165 CVT | Wheel Tractors | – | L6 7L 6700CC 409CID |
| Case / Case-Ih Puma 150 | Wheel Tractors | – | L6 7L 6700CC 409CID |
| Caterpillar 834B 7BR-ON | Compactors, Dozers | – | w / Caterpillar 3408E Engine |
| Caterpillar 836G 7MZ-ON | Compactors, Dozers | – | w / Caterpillar 3456 Engine |
| Caterpillar 844H BTW-ON | Compactors, Dozers | – | w / Caterpillar C27 Engine |
| Caterpillar 854K | Compactors, Dozers | – | w / Caterpillar C32 Engine |
| Caterpillar CB44B | Compactors, Dozers | – | L4 4L 4400CC 269CID |
| Caterpillar CB54B | Compactors, Dozers | – | L4 4L 4400CC 269CID |
| Caterpillar D10R 3KR-ON | Crawler Tractors | – | w / Caterpillar 3412 Engine |
| Caterpillar D3C 4KS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D3C 4TS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D3C 5GS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D3C LGP XL SERIES III 4KS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D3C LGP XL SERIES III 4TS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D3C LGP XL SERIES III 5GS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D3K LGP | Crawler Tractors | – | L4 4.4L 4400cc 269 CID |
| Caterpillar D3K XL | Crawler Tractors | – | L4 4.4L 4400cc 269 CID |
| Caterpillar D4C 4LS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D4C 6BS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D4C 8CS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D4C LGP XL SERIES III 4LS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D4C LGP XL SERIES III 6BS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D4C LGP XL SERIES III 8CS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D4K LGP | Crawler Tractors | – | L4 4.4L 4400cc 269 CID |
| Caterpillar D4K XL | Crawler Tractors | – | L4 4.4L 4400cc 269 CID |
| Caterpillar D5C 5HS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D5C 6CS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D5C 7PS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D5C LGP XL SERIES III 5HS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D5C LGP XL SERIES III 6CS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D5C LGP XL SERIES III 7PS-ON | Crawler Tractors | – | w / Caterpillar 3046 Engine |
| Caterpillar D6K | Crawler Tractors | – | L6 6.6L 6600cc 403 CID |
| Caterpillar D6K LGP | Crawler Tractors | – | L6 6.6L 6600cc 403 CID |
| Caterpillar D6K XL | Crawler Tractors | – | L6 6.6L 6600cc 403 CID |
| Caterpillar D6N DJA-ON | Crawler Tractors | – | w / Caterpillar C6.6 ACERT Engine |
| Caterpillar D6N LJR-ON | Crawler Tractors | – | w / Caterpillar C6.6 ACERT Engine |
| Caterpillar D6N MLW-ON | Crawler Tractors | – | w / Caterpillar C6.6 ACERT Engine |
| Caterpillar D6N XL | Crawler Tractors | – | w / Caterpillar C6.6 ACERT Engine |
| Caterpillar D7E | Crawler Tractors | – | L6 9.3L 9300CC 568CID |
| Caterpillar D7E LGP | Crawler Tractors | – | L6 9.3L 9300CC 568CID |
| Caterpillar D8R SERIES II 6YZ-ON | Crawler Tractors | – | w / Caterpillar 3406E Engine |
| Caterpillar D8T J8B-ON | Crawler Tractors | – | w / Caterpillar C15 Engine |
| Caterpillar D8T KPZ-ON | Crawler Tractors | – | w / Caterpillar C15 Engine |
| Caterpillar 345CMH D3S-ON | Excavators | – | L6 12.5L 12503cc 763 CID |
| Caterpillar 345CMH M2R-ON | Excavators | – | L6 12.5L 12503cc 763 CID |
| Caterpillar 553C | Forestry Equipment, Handlers | – | L6 6.6L 6601cc 402.8 CID |
| Caterpillar 563C | Forestry Equipment, Handlers | – | L6 6.6L 6601cc 402.8 CID |
| Caterpillar 573C | Forestry Equipment, Handlers | – | L6 7.01L 7010cc 428 CID |
| Caterpillar TK371 WBG-ON | Forestry Equipment, Handlers | – | w / Caterpillar 3126 Engine |
| Caterpillar TK381 WBH-ON | Forestry Equipment, Handlers | – | w / Caterpillar 3126 Engine |
| Caterpillar IT12B 1KF-00819 | Integrated Toolcarriers | – | w / Caterpillar 3114T Engine |
| Caterpillar IT12F 1KF00820-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT14F 4EL-ON | Integrated Toolcarriers | – | w / Caterpillar 3114T Engine |
| Caterpillar IT14G 1WN-00659 | Integrated Toolcarriers | – | w / Perkins Engine |
| Caterpillar IT14G 1WN00660-ON | Integrated Toolcarriers | – | w / Perkins Engine |
| Caterpillar IT14G 8ZM-00331 | Integrated Toolcarriers | – | w / Perkins Engine |
| Caterpillar IT14G 8ZM00332-ON | Integrated Toolcarriers | – | w / Perkins Engine |
| Caterpillar IT18F | Integrated Toolcarriers | – | w / Caterpillar 3114 Engine |
| Caterpillar IT24F 4NN-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT24F 6KN-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT28F 1JL-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT28F 3CL-01199 | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT28F 3CL01200-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT28G | Integrated Toolcarriers | – | L6 6.6L 6600CC 403CID |
| Caterpillar IT38F | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT38F 5DR-00270 | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT38F 5DR00271-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT38G 1CW-00328 | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT38G 1CW00329-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT38G 7BS-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT62G 6PS-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar IT62G AKP-ON | Integrated Toolcarriers | – | w / Caterpillar Engine |
| Caterpillar 216 4NZ-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 216B RLL-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 216B3 CD3-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 216B3 DSN-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 216B3 JXM-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 216B3 PWK-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 226 | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 226B MJH-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 226B3 AS2-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 226B3 DXZ-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 226B3 MWD-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 226B3 SNA-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 228 6BZ-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 236 4YZ-03999 | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 236 4YZ04000-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 236 5SZ-03999 | Loaders | – | w / Perkins Engine |
| Caterpillar 236 5SZ04000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 236 6LZ-00999 | Loaders | – | w / Perkins Engine |
| Caterpillar 236 6LZ01000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 236 CED-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 236 FDG-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 242B3 | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 246 4YZ-03999 | Loaders | – | w / Perkins Engine |
| Caterpillar 246 4YZ04000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 246 5SZ-03999 | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 246 5SZ04000-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 246 6LZ-00999 | Loaders | – | w / Perkins Engine |
| Caterpillar 246 6LZ01000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 246 CED-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 246 FDG-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 246C JAY-ON | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 247B2 MTL-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 248 4YZ-03999 | Loaders | – | w / Perkins Engine |
| Caterpillar 248 5SZ-03999 | Loaders | – | w / Perkins Engine |
| Caterpillar 248 6LZ-00999 | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 248 6LZ01000-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 252 4YZ04000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 252 5SZ04000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 252 CED-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 252 FDG-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 256C C4M-ON | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 256C CJS-ON | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 257B SLK-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 257B3 B7H-ON | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 257B3 CYM-ON | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 259B3 YYZ-ON | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 262 4YZ04000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 262 5SZ04000-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 262 CED-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 262 FDG-ON | Loaders | – | w / Perkins Engine |
| Caterpillar 262C | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 277C JWF-ON | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 277C KCC-ON | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 277C2 MET-ON | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 279C | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 287 CNY-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 287C MAS-ON | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 297C | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 299C JSP-ON | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 446 6XF-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 446B 5BL-02499 | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 574B FORWARDER CZZ-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 902 7ES-ON | Loaders | – | L4 2.2L 2200CC 134CID |
| Caterpillar 906 6ZS-ON | Loaders | – | L4 4.4L 4400CC 269CID |
| Caterpillar 906H | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 906H | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 906H2 | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 907H | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 907H | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 907H2 | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 908 8BS-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 908H | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 908H | Loaders | – | L4 3.4L 3400CC 207CID |
| Caterpillar 908H2 | Loaders | – | L4 3.3L 3300CC 201CID |
| Caterpillar 910F 1SF01104-ON | Loaders | – | w / Caterpillar 3114T Engine |
| Caterpillar 910G AKR-ON | Loaders | – | w / Caterpillar 3064 Engine |
| Caterpillar 914G 7ZM-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 914G 9WM-ON | Loaders | – | w / Caterpillar 3054 Engine |
| Caterpillar 918F 2CK-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 918F 3TJ-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 918F 5DL-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 924F 4YN-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 924F 5NN-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 924F 6MN-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 924F 7PN-ON | Loaders | – | w / Caterpillar 3114 Engine |
| Caterpillar 924GZ 3DZ-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 924GZ 3PZ-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 924GZ 6YW-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 924GZ 9SW-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 924GZ AAB-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 924GZ AAN-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 924H | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 924H JTM-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 928F 2XL-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 928F 8AK-00699 | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 928F 8AK00700-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 928G | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 928G | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 928H RSB-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 928HZ BYD-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 928HZ CXK-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 930G TFW-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 930G TWR-ON | Loaders | – | L6 6.0L 6000CC 366CID |
| Caterpillar 933C 4MS-ON | Loaders | – | w / Caterpillar 3046 Engine |
| Caterpillar 933C 5JS-ON | Loaders | – | w / Caterpillar 3046 Engine |
| Caterpillar 933C LGP 4MS-ON | Loaders | – | w / Caterpillar 3046 Engine |
| Caterpillar 933C LGP 5JS-ON | Loaders | – | w / Caterpillar 3046 Engine |
| Caterpillar 938F 1KM-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 938F 2RM-01232 | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 938F 2RM01291-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 938F 7SN-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 938F 8SM-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 938G 4YS-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 938G 6WS-00682 | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 938G 6WS00683-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 938G 8RS-00610 | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 938G 8RS00611-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 938G 9HS-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 939C 6DS-ON | Loaders | – | w / Caterpillar 3046 Engine |
| Caterpillar 950G 2JS-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 950G 3JW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 950G 4BS-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 950G 5FW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 950G 5MW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 950G 6NS-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 950G 8JW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 950H | Loaders | – | L6 7.2L 7200CC 439CID |
| Caterpillar 953D LBP-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 962G 3BS-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G 4PW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G 5AS-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G 5RS-00226 | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G 5RS00227-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G 6EW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G 6HW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G 7BW-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 962G BDP-ON | Loaders | – | w / Caterpillar 3126 Engine |
| Caterpillar 963D LCS-ON | Loaders | – | L6 6.6L 6600CC 403CID |
| Caterpillar 966G 3PW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 966G 3SW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 966G 3ZS-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 966G 8XW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 966G 9RS-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 966G AAH-ON | Loaders | – | w / Caterpillar Engine |
| Caterpillar 966G HDH-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 966G SERIES II AXJ-ON | Loaders | – | w / Caterpillar 3176C Engine |
| Caterpillar 972G 1EW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 972G 4WW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 972G 6AW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 972G 7LS-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 972G 9GW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 972G AAW-ON | Loaders | – | w / Caterpillar 3306 Engine |
| Caterpillar 972G SERIES II AXC-ON | Loaders | – | w / Caterpillar 3196 Engine |
| Caterpillar 972G SERIES II AXN-ON | Loaders | – | w / Caterpillar 3196 Engine |
| Caterpillar 980G SERIES II AWH-ON | Loaders | – | w / Caterpillar 3406 Engine |
| Caterpillar 980GII AXG-ON | Loaders | – | w / Caterpillar 3406E Engine |
| Caterpillar 980H | Loaders | – | L6 15.2L 15200CC 928CID |
| Caterpillar 988F SERIES II 2ZR-ON | Loaders | – | w / Caterpillar 3408E Engine |
| Caterpillar 988G 2TW-ON | Loaders | – | w / Caterpillar 3456 Engine |
| Caterpillar 988G BNH-ON | Loaders | – | w / Caterpillar 3456 Engine |
| Caterpillar 992G 7HR-ON | Loaders | – | w / Caterpillar 3508B Engine |
| Caterpillar 992G ADZ-ON | Loaders | – | w / Caterpillar 3508 Engine |
| Caterpillar 992K | Loaders | – | w / Caterpillar C32 Engine |
| Caterpillar 994 9YF-ON | Loaders | – | w / Caterpillar Engine |
| Caterpillar 994D 3TZ-ON | Loaders | – | w / Caterpillar 3516B Engine |
| Caterpillar 120M | Motor Graders | – | L6 6.6L 403 CID |
| Caterpillar 120M2 AWD | Motor Graders | – | L6 7.01L 428 CID |
| Caterpillar 12M2 | Motor Graders | – | L6 9.3L 567.5 CID |
| Caterpillar 12M2 AWD | Motor Graders | – | L6 9.3L 567.5 CID |
| Caterpillar 140 GC | Motor Graders | – | L6 7.01L 428 CID |
| Caterpillar 140M B9D-ON | Motor Graders | – | w / Caterpillar C7 Engine |
| Caterpillar 140M D9G-ON | Motor Graders | – | L6 9.3L 567.5 CID |
| Caterpillar 140M2 | Motor Graders | – | L6 9.3L 567.5 CID |
| Caterpillar 143H 1AL-ON | Motor Graders | – | w / Caterpillar 3306 Engine |
| Caterpillar 160M2 AWD | Motor Graders | – | L6 9.3L 567.5 CID |
| Caterpillar 163HNA 5AK-ON | Motor Graders | – | w / Caterpillar 3306 Engine |
| Caterpillar 16M B9H-ON | Motor Graders | – | w / Caterpillar C13 Engine |
| Caterpillar 16M R9H-ON | Motor Graders | – | w / Caterpillar C13 Engine |
| Caterpillar AP1000F | Paving Equipment | – | L6 7L 7000CC 427CID |
| Caterpillar AP1055F | Paving Equipment | – | L6 7L 7000CC 427CID |
| Caterpillar AP500F | Paving Equipment | – | L4 4.4L 4400CC 269CID |
| Caterpillar AP555F | Paving Equipment | – | L4 4.4L 4400CC 269CID |
| Caterpillar AP600F | Paving Equipment | – | L6 7L 7000CC 427CID |
| Caterpillar AP655F | Paving Equipment | – | L6 7L 7000CC 427CID |
| Caterpillar AP655F L | Paving Equipment | – | L6 7L 7000CC 427CID |
| Caterpillar CB15 | Paving Equipment | – | L4 4.4L 4400CC 269CID |
| Caterpillar CB16 | Paving Equipment | – | L4 4.4L 4400CC 269CID |
| Caterpillar PL61 WGS-on | Pipelayers | – | w / Caterpillar C6.6 Acert Engine |
| Caterpillar 515 | Skidders | – | L4 7.0L 7000CC 427CID |
| Caterpillar TH407C | Telehandlers | – | L4 3.4L 3400CC 207CID |
| Caterpillar TH414C | Telehandlers | – | L4 3.4L 3400CC 207CID |
| Caterpillar TH417C | Telehandlers | – | L4 3.4L 3400CC 207CID |
| Caterpillar TH514C | Telehandlers | – | L4 3.4L 3400CC 207CID |
| Caterpillar AD30 | Trucks-Articulated Rear Dump | – | L6 15.2L |
| Caterpillar AD55 ANW-ON | Trucks-Articulated Rear Dump | – | w / Caterpillar C18 Engine |
| Caterpillar 769D 5SS-ON | Trucks-Off Highway | – | w / Caterpillar 3408E Engine |
| Caterpillar 769D 5TR-00504 | Trucks-Off Highway | – | w / Caterpillar 3408E Engine |
| Caterpillar 769D BBB-ON | Trucks-Off Highway | – | w / Caterpillar 3408E Engine |
| Caterpillar 771D 6YS-ON | Trucks-Off Highway | – | w / Caterpillar 3408E Engine |
| Caterpillar 771D BCA-ON | Trucks-Off Highway | – | w / Caterpillar 3408E Engine |
| Caterpillar 773D 7CS-ON | Trucks-Off Highway | – | w / Caterpillar Engine |
| Caterpillar 773E BDA-ON | Trucks-Off Highway | – | w / Caterpillar 3412E Engine |
| Caterpillar 773E BDA259-478BDA1-ON | Trucks-Off Highway | – | w / Caterpillar 3412E Engine |
| Caterpillar 775D | Trucks-Off Highway | – | w / Caterpillar 3412E Engine |
| Caterpillar 775E BEC-ON | Trucks-Off Highway | – | w / Caterpillar 3412E Engine |
| Caterpillar 793D FDB-ON | Trucks-Off Highway | – | V16 3.516L 3516CC 215CID |
| Caterpillar 797 5YW-ON | Trucks-Off Highway | – | w / Caterpillar Engine |
| Challenger CHALLENGER 35 1TJ-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 1TJ-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 35 3HS-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 3HS-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 35 3SM-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 3SM-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 35 4KW-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 4KW-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 35 4YL-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 4YL-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 35 7TZ-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 7TZ-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 35 8RD-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 ABF-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 35 ADK-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45 3BK-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45 4KW-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45 4KW-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 45 4YL-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 45 4YL-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 45 ABF-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 55 3SM-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 55 3SM-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 55 6NN-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 55 7TZ-ON | Farm Tractors | – | w / Caterpillar 3116 Engine |
| Challenger CHALLENGER 55 7TZ-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Challenger CHALLENGER 55 AEN-ON | Farm Tractors | – | w / Caterpillar 3126 Engine |
| Claas 450 LEXION | Miscellaneous Equipment | – | w / Caterpillar C9 Engine |
| Claas 460 EVOLUTION LEXION | Miscellaneous Equipment | – | w / Caterpillar C9 Engine |
| Claas 460 LEXION | Miscellaneous Equipment | – | w / Caterpillar C9 Engine |
| Claas 460 MTS LEXION | Miscellaneous Equipment | – | w / Caterpillar C9 Engine |
| Claas 470 MONTANA LEXION | Miscellaneous Equipment | – | w / Caterpillar C9 Engine |
| Claas 480 LEXION | Miscellaneous Equipment | – | w / Caterpillar C12 Engine |
| Claas 480 MTS LEXION | Miscellaneous Equipment | – | w / Caterpillar C12 Engine |
| Claas 540C LEXION | Miscellaneous Equipment | – | w / Caterpillar 3126B Engine |
| Claas 550 LEXION | Miscellaneous Equipment | – | w / Caterpillar C9 Engine |
| Claas 560 LEXION | Miscellaneous Equipment | – | w / Caterpillar C10 Engine |
| Claas 560 LEXION MTS | Miscellaneous Equipment | – | w / Caterpillar C10 Engine |
| Claas 570 LEXION | Miscellaneous Equipment | – | w / Caterpillar C12 Engine |
| Ditchwitch HT220 | Trenchers | – | 6.7L 6700cc 409 CID(Turbo/Intercooled QSB6.7 (Tier III) Diesel Mfr Cummins ) |
| Ditchwitch RT70M | Trenchers | – | 4.5L 4523cc 276 CID(Naturally Aspirated 4045DF150 Diesel Mfr John Deere ) |
| Ditchwitch RT75M | Trenchers | – | 4.5L 4523cc 276 CID(Naturally Aspirated 4045DF270 Diesel Mfr John Deere ) |
| Ditchwitch RT90M | Trenchers | – | 4.5L 4523cc 276 CID(Naturally Aspirated 4045DF150 Diesel Mfr John Deere ) |
| Ditchwitch RT95M | Trenchers | – | 4.5L 4523cc 276 CID(Turbo 4045TF270 Diesel Mfr John Deere ) |
| Ditchwitch RT95M | Trenchers | – | 4.5L 4523cc 276 CID(Turbo/Intercooled 4045HF280B Diesel Mfr John Deere ) |
| Doosan/Daewoo DD80 | Dozer | – | 0 (Naturally Aspirated DB58 Diesel Mfr Daewoo ) |
| Doosan/Daewoo DD80L | Dozer | – | 0 (Naturally Aspirated DB58 Diesel Mfr Daewoo ) |
| Hypac C784 (VIBRATORY COMPACTOR) | Equipment | – | w / Cummins QSB5.9-C Engine |
| Ingersoll-Rand DD70 | Rollers | – | w / Cummins Diesel 4B3.9 Eng. |
| J.C.B. (J C Bamford) 1110 ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 1110 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 1110HF ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 1110HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 1110T ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 1110T ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 1110THF ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 1110THF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 160 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 104.22 Eng. |
| J.C.B. (J C Bamford) 160 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 160 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 160HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 104.22 Eng. |
| J.C.B. (J C Bamford) 160HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 160HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 170 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 104.22 Eng. |
| J.C.B. (J C Bamford) 170 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 170 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 170HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 104.22 Eng. |
| J.C.B. (J C Bamford) 170HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 170HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 180 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 180 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 180HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 180HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 180T ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22T Eng. |
| J.C.B. (J C Bamford) 180T ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 180THF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404C-22T Eng. |
| J.C.B. (J C Bamford) 180THF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 190 ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 190 ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 190HF ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 190HF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 190T ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 190T ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 190THF ROBOT | Backhoes/Loaders/SkidSteers | – | L4 4.4L 4400CC 269CID |
| J.C.B. (J C Bamford) 190THF ROBOT | Backhoes/Loaders/SkidSteers | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 926 (RTFL SERIES) | Lift Trucks | – | 4.4L 4400cc 269 CID |
| J.C.B. (J C Bamford) 926 (RTFL SERIES) | Lift Trucks | – | w / Perkins Diesel 1004.4 Eng. |
| J.C.B. (J C Bamford) 926 (RTFL SERIES) | Lift Trucks | – | w / Perkins Diesel 1104C-44 Eng. |
| J.C.B. (J C Bamford) 930 (RTFL SERIES) | Lift Trucks | – | 4.4L 4400cc 269 CID |
| J.C.B. (J C Bamford) 930 (RTFL SERIES) | Lift Trucks | – | w / Perkins Diesel 1004.4 Eng. |
| J.C.B. (J C Bamford) 930 (RTFL SERIES) | Lift Trucks | – | w / Perkins Diesel 1104C-44 Eng. |
| J.C.B. (J C Bamford) 940 (RTFL SERIES) | Lift Trucks | – | 4.4L 4400cc 269 CID |
| J.C.B. (J C Bamford) 940 (RTFL SERIES) | Lift Trucks | – | w / Perkins Diesel 1004.4 Eng. |
| J.C.B. (J C Bamford) 940 (RTFL SERIES) | Lift Trucks | – | w / Perkins Diesel 1104C-44 Eng. |
| J.C.B. (J C Bamford) 515-40 | Telescopic Handlers/Loadalls | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 515-40 | Telescopic Handlers/Loadalls | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 520-40 | Telescopic Handlers/Loadalls | – | w / Perkins 404C-22 Eng. |
| J.C.B. (J C Bamford) 520-40 | Telescopic Handlers/Loadalls | – | w / Perkins 404D-22 Tier III Eng. |
| J.C.B. (J C Bamford) 524-50 | Telescopic Handlers/Loadalls | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 527-55 | Telescopic Handlers/Loadalls | – | w / Perkins 1104C-44 Eng. |
| J.C.B. (J C Bamford) 527-55S | Telescopic Handlers/Loadalls | – | w / Perkins 1104C-44 Eng. |
| Manitowoc 21000 CRANE | Equipment | – | w / Cummins Diesel QSK19-C600 Eng. |
| Manitowoc 222WC CRANE | Equipment | – | w / Cummins Diesel C8.3 Tier II Eng. |
| Manitowoc 777 CRANE | Equipment | – | w / Caterpillar Diesel 3176C Eng. |
| Manitowoc 777 CRANE | Equipment | – | w / Cummins Diesel 6CTA8.3 Eng. |
| Manitowoc 777 CRANE | Equipment | – | w / Cummins Diesel Eng. |
| Manitowoc 777 CRANE | Equipment | – | w / Cummins Diesel QSC8.3 Eng. |
| Manitowoc 888 CRANE | Equipment | – | w / Cummins Diesel Eng. |
| Manitowoc 888 RINGER | Equipment | – | w / Cummins MTA11-C330 Eng. |
| Manitowoc 999 CRANE | Equipment | – | w / Caterpillar Diesel 3176C Eng. |
| Manitowoc 999 CRANE | Equipment | – | w / Cummins Diesel QSM11 Eng. |
| New Holland CR8.90 | Combines, Foragers, Harvesters | – | L6 11.1L 677CID |
| New Holland CR9070 | Combines, Foragers, Harvesters | – | L6 10.3L 629CID |
| New Holland CR9080 | Combines, Foragers, Harvesters | – | L6 12.9L 787CID |
| New Holland CR9080 ELEVATION | Combines, Foragers, Harvesters | – | L6 12.9L 787CID |
| New Holland FR450 FORAGE HARVESTER | Combines, Foragers, Harvesters | – | L6 8.7L 531CID |
| New Holland FR500 FORAGE HARVESTER | Combines, Foragers, Harvesters | – | L6 12.9L 787CID |
| New Holland FR600 FORAGE HARVESTER | Combines, Foragers, Harvesters | – | L6 12.9L 787CID |
| New Holland FR850 FORAGE HARVESTER | Combines, Foragers, Harvesters | – | 20.1L |
| New Holland D150 | Dozers | – | 5.9L |
| New Holland L180 (SKID STEER) | Loaders | – | 3.4L |
| New Holland L180 (SKID STEER) | Loaders | – | w / New Holland 334T/M2 Eng. |
| New Holland L180 (SKID STEER) | Loaders | – | w / New Holland Diesel 3/192 Eng. |
| New Holland LS180.B (SKID STEER) | Loaders | – | 3.4L |
| New Holland LS180.B (SKID STEER) | Loaders | – | L 3 |
| New Holland LS185.B (SKID STEER) | Loaders | – | L 3 3.4L |
| New Holland LS190.B (SKID STEER) | Loaders | – | L 4 4.5L |
| New Holland LT185.B (COMPACT TRACK LOADER) | Loaders | – | L 3 3.4L |
| New Holland LT190.B (COMPACT TRACK LOADER) | Loaders | – | L 4 4.5L |
| New Holland LW170.B (WHEEL LOADER) | Loaders | – | w / New Holland Diesel 667TA Eng. |
| New Holland U80 | Loaders | – | 4.1L 4080cc 249 CID |
| New Holland W170B (WHEEL LOADER) | Loaders | – | w / New Holland 667TA/EB3 Tier III Eng. |
| New Holland W170BTC (WHEEL LOADER) | Loaders | – | w / New Holland 667TA/EB3 Tier III Eng. |
| New Holland W190B (WHEEL LOADER) | Loaders | – | w / New Holland 667TA/E3 Tier III Eng. |
| New Holland SP.240F | Sprayers | – | w / Cummins Diesel QSB6.7 Eng. |
| New Holland SP.240F XP | Sprayers | – | w / Cummins Diesel QSB6.7 Eng. |
| New Holland SP.275F | Sprayers | – | w / Cummins Diesel QSB6.7 Eng. |
| New Holland SP.333F | Sprayers | – | w / Cummins Diesel QSL8.3 Eng. |
| New Holland SP.365F | Sprayers | – | 0 8.9L 8900cc 543 CID |
| New Holland T6.145 | Tractors | – | L4 4.5L 4490cc 274 CID |
| New Holland T6.175 | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6.180 | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6010 DELTA | Tractors | – | 4.5L 4485cc 273.7 CID |
| New Holland T6010 PLUS | Tractors | – | 4.5L 4485cc 273.7 CID |
| New Holland T6020 DELTA | Tractors | – | 4.5L 4474cc 273 CID |
| New Holland T6020 ELITE | Tractors | – | 4.5L 4485cc 273.7 CID |
| New Holland T6020 PLUS | Tractors | – | 4.5L 4474cc 273 CID |
| New Holland T6030 DELTA | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6030 ELITE | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6030 PLUS | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6040 ELITE | Tractors | – | 4.5L 4485cc 273.7 CID |
| New Holland T6050 DELTA | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6050 ELITE | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6050 PLUS | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6050 POWER COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6050 RANGE COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6060 ELITE | Tractors | – | 4.5L 4485cc 273.7 CID |
| New Holland T6070 ELITE | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6070 PLUS | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6070 POWER COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6070 RANGE COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6080 ELITE | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6080 POWER COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6080 RANGE COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6090 POWER COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T6090 RANGE COMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.170 POWERCOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.170 RANGECOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.185 POWERCOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.185 RANGECOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.200 POWERCOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.200 RANGECOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.210 POWERCOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.210 RANGECOMMAND | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.220 | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.235 | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.250 | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland T7.260 | Tractors | – | 6.7L 6735cc 411 CID |
| New Holland TG210 | Tractors | – | 8.3L |
| New Holland TG255 | Tractors | – | 8.3L |
| Skyjack SJB40TB | Telescopic Boom Lifts | – | w / Ford Gas/Propane LRG425 Eng. |
| Skyjack SJB40TB | Telescopic Boom Lifts | – | w / Kubota Diesel V2203T Eng. |
| Skyjack SJB45TB | Telescopic Boom Lifts | – | w / Ford Gas/Propane LRG425 Eng. |
| Skyjack SJB45TB | Telescopic Boom Lifts | – | w / Kubota Diesel V2203T Eng. |
| Skyjack SJB46TK | Telescopic Boom Lifts | – | w / Deutz Diesel F3L2011 Eng. |
| Skyjack SJB46TK | Telescopic Boom Lifts | – | w / Ford Gas/Propane VSG413 Eng. |
| Skyjack SJB46TK-RJ | Telescopic Boom Lifts | – | w / Deutz Diesel F3L2011 Eng. |
| Skyjack SJB46TK-RJ | Telescopic Boom Lifts | – | w / Ford Gas/Propane VSG413 Eng. |
| Skyjack SJB60TB | Telescopic Boom Lifts | – | w / Ford Gas/Propane LRG425 Eng. |
| Skyjack SJB60TB | Telescopic Boom Lifts | – | w / Kubota Diesel V2203T Eng. |
| Skyjack SJB65TB | Telescopic Boom Lifts | – | w / Ford Gas/Propane LRG425 Eng. |
| Skyjack SJB65TB | Telescopic Boom Lifts | – | w / Kubota Diesel V2203T Eng. |
| Skyjack SJB66TK | Telescopic Boom Lifts | – | w / Deutz Diesel F4L2011 Eng. |
| Skyjack SJB66TK | Telescopic Boom Lifts | – | w / Ford Gas/Propane LRG423 Eng. |
| Terex PT100 | Skid Steer Loaders | – | w / Perkins Diesel 1104C.44T Tier II Eng. |
| Terex PT70 | Skid Steer Loaders | – | w / Perkins Diesel 804C-33T Tier III Eng. |
| Terex PT80 | Skid Steer Loaders | – | w / Perkins Diesel 804C-33T Tier III Eng. |
| Toro GROUNDMASTER 4000-D | Tractors & Turf Equipment | – | L4 1995cc 121.7 CID |
| Toro GROUNDMASTER 4100-D | Tractors & Turf Equipment | – | L4 2090cc 127.5 CID |
| Toro GROUNDSMASTER 4000D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro GROUNDSMASTER 4100D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro GROUNDSMASTER 4500D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro GROUNDSMASTER 4700D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 5210 | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 5410 | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 5410 (03670) | Tractors & Turf Equipment | – | w / Kubota 35.5 HP Diesel V1505 Eng. |
| Toro REELMASTER 5410-D (03606) | Tractors & Turf Equipment | – | L3 1.642L 1642CC 100CID |
| Toro REELMASTER 5410-D (03672) | Tractors & Turf Equipment | – | L3 1.642L 1642CC 100CID |
| Toro REELMASTER 5410-G (03608) | Tractors & Turf Equipment | – | w / Kubota 49 HP Gas Eng. |
| Toro REELMASTER 5410-G (03673) | Tractors & Turf Equipment | – | w / Kubota 49 HP Gas Eng. |
| Toro REELMASTER 5500D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 5510 | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 5510 (03680) | Tractors & Turf Equipment | – | w / Kubota 35.5 HP Diesel V1505 Eng. |
| Toro REELMASTER 5510-D (03687) | Tractors & Turf Equipment | – | L3 1.642L 1642CC 100CID |
| Toro REELMASTER 5510-G (03689) | Tractors & Turf Equipment | – | w / Kubota 49 HP Gas Eng. |
| Toro REELMASTER 5610 | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 6500D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 6500D | Tractors & Turf Equipment | – | w / Peugeot XUD9 Eng. |
| Toro REELMASTER 6700D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Toro REELMASTER 6700D | Tractors & Turf Equipment | – | w / Peugeot Eng. |
| Toro REELMASTER 7000D | Tractors & Turf Equipment | – | w / Kubota Diesel Eng. |
| Tyler PATRIOT 150 | Sprayers | – | w / Diesel Eng. |
| Volvo DD112HF | Compactors | – | 3.9L 3916cc 239 CID |
| Volvo DD112HF | Compactors | – | 4.5L 4506cc 275 CID |
| Volvo DD118HA | Compactors | – | 3.9L 3916cc 239 CID |
| Volvo DD118HF | Compactors | – | 3.9L 3916cc 239 CID |
| Volvo DD118HFA | Compactors | – | 3.9L 3916cc 239 CID |
| Volvo DD132HF | Compactors | – | 4.5L 4506cc 275 CID |
| Volvo DD132HF | Compactors | – | 5.9L 5883cc 359 CID |
| Volvo DD138HA | Compactors | – | 5.9L 5883cc 359 CID |
| Volvo DD138HA | Compactors | – | 6.7L 6686cc 408 CID |
| Volvo DD138HF | Compactors | – | 5.9L 5883cc 359 CID |
| Volvo DD138HF | Compactors | – | 6.7L 6686cc 408 CID |
| Volvo DD138HFA | Compactors | – | 5.9L 5883cc 359 CID |
| Volvo DD138HFA | Compactors | – | 6.7L 6686cc 408 CID |
| Volvo DD70 | Compactors | – | 3.9L 3916cc 239 CID |
| Volvo DD70HF | Compactors | – | 3.9L 3916cc 239 CID |
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
WIX filters come with a limited warranty. WIX warrants their filters to be free from defects in materials and workmanship during the recommended service life period. Non-filter products are warranted for a period of one (1) year.
Key Conditions
It is the buyer’s responsibility to determine the correct OEM filter for their application and the proper WIX cross-reference. To file a claim, it must be submitted within 30 days of discovering damage to a WIX representative or distributor. WIX reserves the right to inspect the filter, equipment, and service records.
Warranty Exclusions
The warranty does not cover the following:
- Use in competitive racing, modified high-performance engines, or aviation applications
- Damage or failure caused by improper installation, misuse, modification, accidents, or abuse
- Use of motor oil other than the viscosity and type recommended by the engine or equipment manufacturer
- Filters submitted in a condition that prohibits evaluation and testing
- Costs of repairs not directly attributable to a defective filter
- Towing fees, rental car fees, or other incidental expenses not specifically provided for under the warranty
Liability Limitations
WIX limits liability for special, incidental, or consequential damages, including claims for loss of use of the engine or equipment, loss of time, inconvenience, or commercial loss. The duration and remedies of all implied warranties, including merchantability and fitness for a particular purpose, are limited to the duration of the express limited warranty.
Related Products
-
WIX 57900 Cartridge Hydraulic Metal Canister Filter | 21 Micron
$75.50 In Stock -
WIX 51494 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 5 Micron
$75.42 In Stock -
WIX 57247 Spin-On Hydraulic Filter | 1 3/8-12 Thread, 2 Micron
$86.95 In Stock -
WIX 51323 Power Steering Cartridge Filter | 25 Micron
$13.45 In Stock
