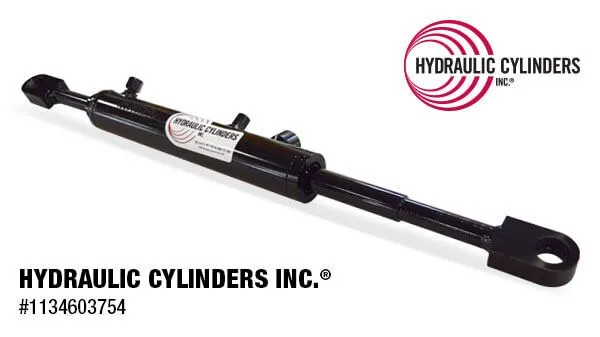

Replacement Hydraulic Bob-Tach Cylinder for Bobcat (PN: 7415655) Models S450-S850 Series, T450-T870 Series, A770
$625.00
Specifications for 1134603754
| SKU | 1134603754 |
|---|---|
| Weight | 24 lbs |
| Bore | 1.50″ |
|---|---|
| Rod | 1.00″ |
| Stroke | 6.25″ |
| Closed | 27.00″ |
| Open Extended Length | 33.25″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Lug |
| Base Pin Size | 1.00″ |
| Base Mount Width | 0.83″ |
| Rod End Mount Type | Drilled Thru Lug |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 0.83″ |
| Extend Port/Plunger | -6 JIC |
| Retract Port/Plunger | -6 SAE ORB 90D |
| Old OEM PNs | 7227530, 7227570, 7307224, 7362530 |
Description
Replacement Bobtach cylinder for Bobcat S450–T870 delivers smooth and reliable quick attach operation. It replaces OEM part number 7415655 and matches factory specs for fit and hydraulic flow. This cylinder fits Bobcat skid steers (S450–S850), track loaders (T450–T870), and the A770 all-wheel steer model.
Its welded rod, double-acting design powers fast attachment locking and release. Built to withstand jobsite wear, it keeps the quick attach system secure and responsive under load.
Made from all-steel components and built in the USA, this replacement Bobtach cylinder is Performance-Built and Warranty-Backed. FASTSHIP eligible — order by 12:00 CST for same-day shipping. Demolish Downtime.
1.50″
1.00″
6.25″
27.00″
33.25″
3000
Drilled Thru Lug
1.00″
0.83″
Drilled Thru Lug
1.00″
0.83″
-6 JIC
-6 SAE ORB 90D
7227530, 7227570, 7307224, 7362530
