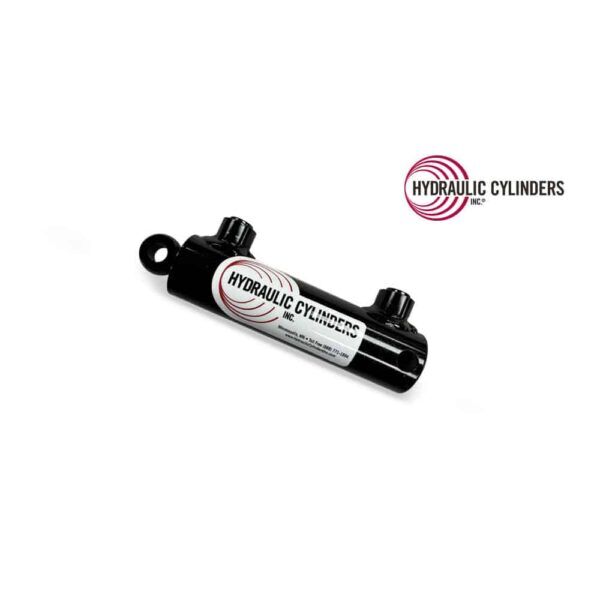

Replacement Hydraulic Quick Coupler Cylinder for Caterpillar (PN: 192-2640) Skid Steer and Compact Track Loader
Specifications for 2171359448
| SKU | 2171359448 |
|---|---|
| Weight | 4.0 lbs |
| Bore | 1.375″ |
|---|---|
| Rod | .625″ |
| Stroke | 4.08″ |
| Closed | 6.85″ |
| Open Extended Length | 10.93″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | .50″ |
| Base Mount Width | 2.00″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | .50″ |
| Rod Mount Width | .50″ |
| Extend Port/Plunger | -6 SAE ORB |
| Retract Port/Plunger | -6 SAE ORB |
Description
The Replacement Hydraulic Quick Coupler Cylinder for Caterpillar skid steer, compact track loader, and compact wheel loader equipment (Original Equipment Manufacturer (OEM) Part Number 192-2640) drives reliable attachment latch and release. This double-acting welded cylinder features a 1.375-inch bore, 0.625-inch rod, and 4.08-inch stroke for OEM-spec direct fit and long service life.
Engineered for daily attachment swaps on Caterpillar skid steers, compact track loaders, and 906-908M compact wheel loaders, it secures the quick coupler under field load. Welded construction reduces wear and minimizes maintenance downtime. Fits 70+ Caterpillar models — full fitment list with serial-range data in Cross Reference.
FASTSHIP eligible—order by 12:00 PM CST for same-day shipping. Performance-Built and Warranty-Backed to keep your fleet ready for work. Demolish Downtime.
1.375″
.625″
4.08″
6.85″
10.93″
3000
Drilled Thru Base
.50″
2.00″
Cross-Tube
.50″
.50″
-6 SAE ORB
-6 SAE ORB
Caterpillar Skid Steer Loader
- 216
- SN: 4NZ1-3399; CAB1-UP
- 216B
- 216B3
- SN: CD31-UP; DSN1-UP; JXM1-UP
- 226
- SN: 5FZ1-UP
- 226B
- 226B3
- SN: MWD1-UP
- 232
- 232B
- 236
- 236B
- 236B3
- 242
- 242B
- 242B3
- SN: SRS1-UP
- 246
- 246B
- 246C
- 248B
- 252
- 252B
- 252B3
- SN: TNK1-UP
- 256C
- 262
- 262B
- 262C
- 262C2
- 268B
- 272C
Caterpillar Compact Track Loader
- 247
- SN: CML1-UP
- 247B
- 247B3
- 257
- SN: CMM1-UP
- 257B
- 257B3
- 259B3
- SN: YYZ1-UP
- 267
- 267B
- 277
- 277B
- 277C
- SN: JWF1-UP; KCC1-UP
- 277C2
- SN: MET1-UP
- 279C
- SN: MBT1-UP
- 279C2
- SN: KWB1-UP
- 287
- 287B
- 287C
- SN: MAS1-UP
- 287C2
- SN: SSB1-UP
- 289C
- SN: JMP1-UP
- 289C2
- 297C
- SN: GCP1-UP
- 299C
Caterpillar Compact Wheel Loader
- 903
- 906
- 906H
- 906H2
- 906K
- 906M
- 907
- 907H
- 907H2
- 907K
- 907M
- 908
- 908H
- 908H2
- 908K
- 908M
Caterpillar Underground Articulated Truck
- AD60
- AD63
